MIC5239YM - Microchip

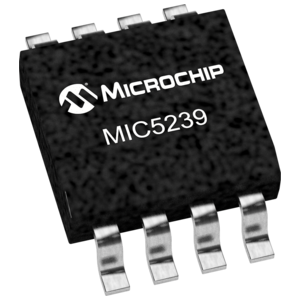

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MIC5239YM
Manufacturer

Microchip
ChipWorker Part#

CW39765473
Category

Voltage Regulator
Package

SOIC-8
Description

LDO Regulator Pos 1.24V to 20V 0.5A 8Pin SOIC N
Documentation

Datasheet

MIC5239YM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MIC5239YM Specifications

Attribute	Attribute Value

Part Number	MIC5239YM
Manufacturer	Microchip
ChipWorker Part#	CW39765473
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	1 Output
Output Voltage	1.24V ~ 20V
Output Current	500 mA
Supply Current	45µA ~ 15mA
Number of Positions	8 Position
Quiescent Current	23 µA
voltage rating	0.35V @500mA
Input Voltage (Max)	30 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	20 V
Output Voltage (Min)	1.24 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.3V ~ 30V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-SOIC
