MIC5239YMM - Microchip

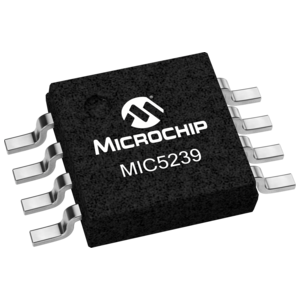

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MIC5239YMM
Manufacturer

Microchip
ChipWorker Part#

CW31844709
Category

Voltage Regulator
Package

MSOP-8
Description

MICROCHIP MIC5239YMM LDO Voltage Regulator, Adjustable, 2.3V to 30V input, 350mV drop., 1.24V to 20V/0.5A out, MSOP-8
Documentation

Datasheet

MIC5239YMM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MIC5239YMM Specifications

Attribute	Attribute Value

Part Number	MIC5239YMM
Manufacturer	Microchip
ChipWorker Part#	CW31844709
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Number of Outputs	1 Output
Output Voltage	1.24V ~ 20V
Output Current	500 mA
Number of Positions	8 Position
Quiescent Current	23 µA
voltage rating	350 mV
Input Voltage (Max)	30 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	20 V
Output Voltage (Min)	1.24 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.3V ~ 30V
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Linear Voltage Regulator IC 1 Output 500mA 8-MSOP
