MINISMDC050F-2 ,Thermistor - TE Connectivity

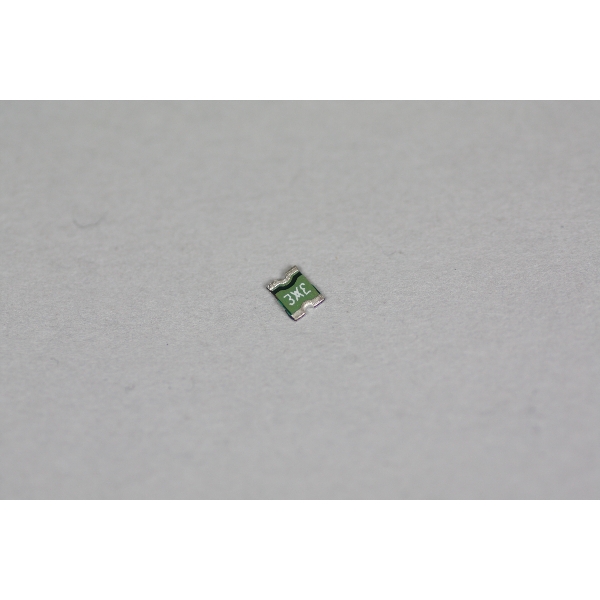

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

136 points

Part No

MINISMDC050F-2
Manufacturer

TE Connectivity
ChipWorker Part#

CW9086400
Category

Thermistor
Package

1812
Description

PTC Resettable Fuse 0.5A(hold) 1A(trip) 24VDC 100A 0.8W 0.15s 0.15Ω SMD Solder Pad 1812 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.22

Buy MINISMDC050F-2

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MINISMDC050F-2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MINISMDC050F-2 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MINISMDC050F-2
Manufacturer	TE Connectivity
ChipWorker Part#	CW9086400
Category	Thermistor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	4532
Case/Package	1812
Voltage Rating (DC)	24.0 V
Operating Voltage	24 V
Time to Trip	0.15 s
Current Rating	100 A
Power Rating	0.8 W
Power Dissipation	0.8 W
Resistance	1 Ω
Holding Current	500 mA
Trip Current	1 A
DC Resistance (DCR)	1 Ω
Current Rating (Max)	100 A
Holding Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	24 VDC
Voltage Rating	24 VDC
	expand all
Size-Length	4.73 mm
Size-Width	3.41 mm
Size-Height	0.62 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536100040
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Tyco Electronics" PolySwitch™ surface-mount devices are the preferred circuit protection method for computer, consumer, multimedia, portable and automotive electronics applications.
**Benefits:**
* Smaller Size Saves Board Space and Cost
* Many Product Choices Give Engineers More Design Flexibility
* Assists in Meeting Regulatory Requirements
* Higher Voltage Ratings Allow Use in New Applications
**Features:**
* Size 4532 mm/1812 mils
* Broadest Range of Resettable Devices in the Industry
* Small Footprint
* Fast Time-to-Trip
* Low Resistance
**Applications:**
* Computer
* Portable Electronics
* Multimedia
* Game Machines
* Telephony and Broadband
* Mobile Phones
* Automotive
* Industrial Controls
* Battery
