MM74HC14N - Fairchild

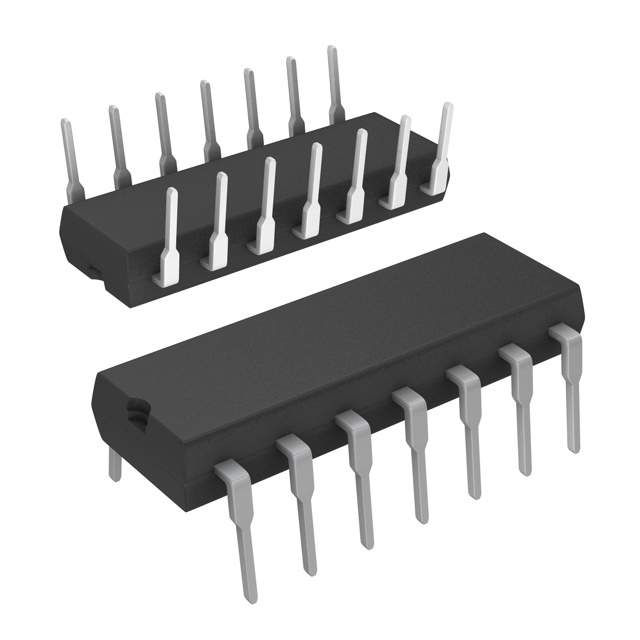

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MM74HC14N
Manufacturer

Fairchild
ChipWorker Part#

CW108690433
Category

Logic Control, Logic Gate IC
Package

DIP-14
Description

Inverter Schmitt Trigger 6Element CMOS 14Pin PDIP
Documentation

Datasheet

MM74HC14N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MM74HC14N Specifications

Attribute	Attribute Value

Part Number	MM74HC14N
Manufacturer	Fairchild
ChipWorker Part#	CW108690433
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	5.00 V
Output Current	5.2 mA
Number of Circuits	6 Circuit
Number of Gates	6 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Size-Height	3.56 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
