MMBF0201NLT1 - ON Semiconductor

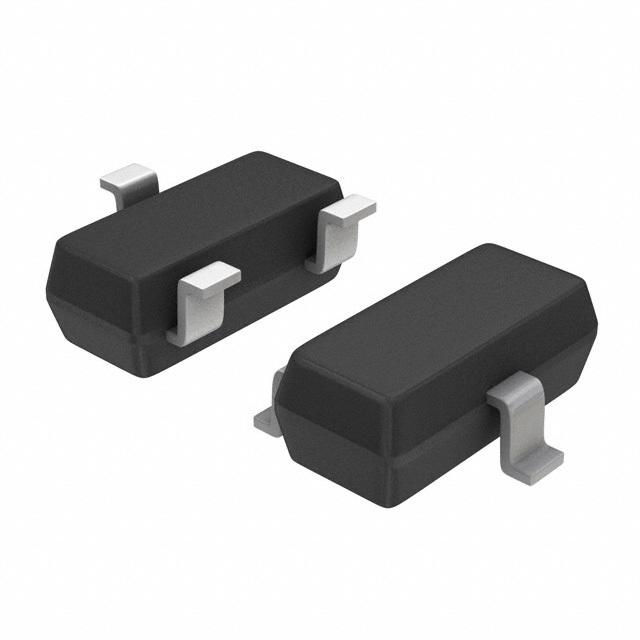

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MMBF0201NLT1
Manufacturer

ON Semiconductor
ChipWorker Part#

CW114935825
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

SOT-23 N-CH 20V 0.3A
Documentation

Datasheet

MMBF0201NLT1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MMBF0201NLT1 Specifications

Attribute	Attribute Value

Part Number	MMBF0201NLT1
Manufacturer	ON Semiconductor
ChipWorker Part#	CW114935825
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SOT-23-3
Voltage Rating (DC)	20.0 V
Current Rating	300 mA
Drain to Source Resistance (on) (Rds)	1.00 Ω
Polarity	N-Channel
Power Dissipation	225 mW
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	62.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	300 mA
Rise Time	2.5 ns
Input Capacitance (Ciss)	45pF @5V(Vds)
Fall Time	2.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	225mW (Ta)
	expand all
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

DPAK For Surface Mount Applications • Low RDS(on) Provides Higher Efficiency and Extends Battery Life • Miniature SOT−23 Surface Mount Package Saves Board Space • Pb−Free Package is Available
