MMCX6252N1-3GT30G-50 ,RF Coaxial Connector, RF Connector - Amphenol

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

78 points

Part No

MMCX6252N1-3GT30G-50
Manufacturer

Amphenol
ChipWorker Part#

CW13567536
Category

RF Coaxial Connector, RF Connector
Description

Conn MMCX F 0Hz to 6GHz 50Ω Solder RA Thru-Hole Gold
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 4.02

Buy MMCX6252N1-3GT30G-50

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MMCX6252N1-3GT30G-50 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MMCX6252N1-3GT30G-50 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MMCX6252N1-3GT30G-50
Manufacturer	Amphenol
ChipWorker Part#	CW13567536
Category	RF Coaxial Connector, RF Connector
Documentation	Datasheet
Mounting Style	Through Hole
Gender	Female
Contact Plating	Gold
Insulation Resistance	1000 MΩ
Orientation	Right Angle
Number of Mating Cycles	500 Cycle
	expand all
Size-Length	6.5 mm
Size-Height	3.8 mm
Contact Material	Beryllium Copper
Insulation Material	Teflon
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Similar & Replacement Parts

Similar products

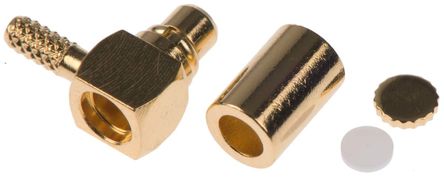

MMCX1112A1-3GT30G-14-50

Product Description

The MMCX6252N1-3GT30G-50 is a Right Angle Jack with gold-plated brass contacts, Teflon insulation and through-hole vertical termination. The MMCX (also called MicroMate™), is a micro-miniature connector series with a snap-lock mechanism allowing for 360 degrees rotation enabling flexibility in PCB layouts. The MicroMate family of products is a 6GHz 50R interconnect system and is Amphenol"s smallest RF connector line. This right angle jack is suitable for PC board.
Liquid crystal polymer housing (SMT)
Broadband performance with low reflection DC to 6GHz
Quick connect/disconnect snap-on mating reduces installation time
500V RMS at 50Hz at sea level Dielectric working voltage
500MR Insulation resistance
