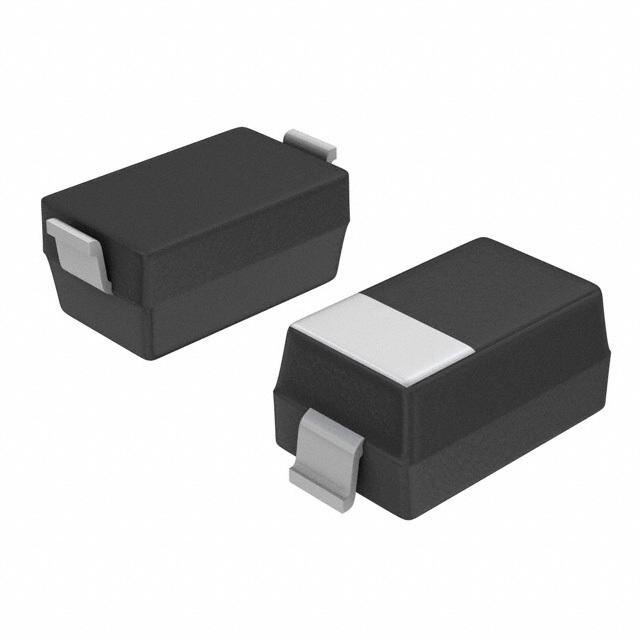

MMSZ4689T1 ,Zener Diode, Zener - ON Semiconductor

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

38 points

Part No

MMSZ4689T1
Manufacturer

ON Semiconductor
ChipWorker Part#

CW97397766
Category

Zener Diode, Zener
Package

SOD-123
Description

SOD-123 5.1V 0.5W(1/2W)
Documentation

Datasheet
Ships from

Moscow
Наличие

74900 pcs In Stock
Estimated Price

$ 0.05

Buy MMSZ4689T1

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MMSZ4689T1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MMSZ4689T1 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MMSZ4689T1
Manufacturer	ON Semiconductor
ChipWorker Part#	CW97397766
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SOD-123
Voltage Rating (DC)	5.10 V
Capacitance Tolerance	±5 %
Power Rating	500 mW
Forward Voltage	900mV @10mA
Power Dissipation	500 mW
Test Current	0.05 mA
Zener Voltage	5.1 V
Maximum Forward Voltage (Max)	900mV @10mA
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
	expand all
Size-Length	2.69 mm
Size-Width	1.6 mm
Size-Height	1.12 mm
Material	Plastic
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
HTS Code	8541100050
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Zener Voltage Regulators
500 mW SOD−123 Surface Mount
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD−123 package. These devices provide a convenient alternative to the leadless 34−package style.
Features
•500 mW Rating on FR−4 or FR−5 Board
•Wide Zener Reverse Voltage Range − 1.8 V to 43 V
•Package Designed for Optimal Automated Board Assembly
•Small Package Size for High Density Applications
•ESD Rating of Class 3 (>16 kV) per Human Body Model
•Pb−Free Packages are Available
