XTR101AG - TI

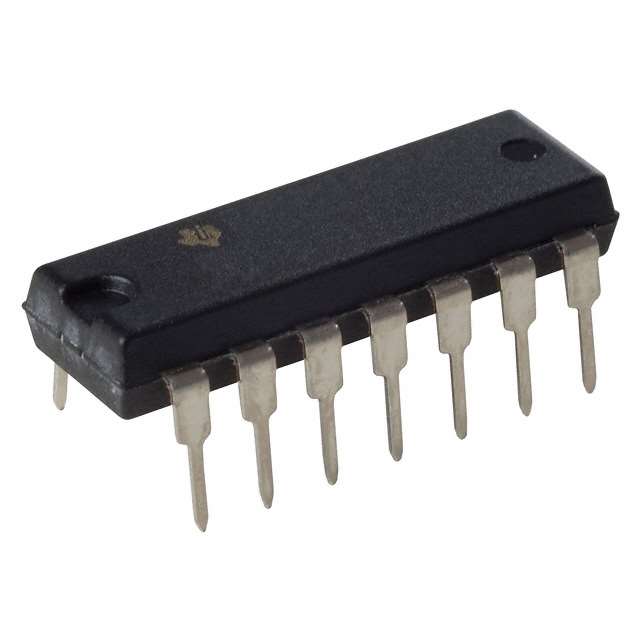

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

XTR101AG
Manufacturer

TI
ChipWorker Part#

CW12784703
Category

Interface IC, Interface Controller
Package

CDIP-14
Description

Current Sense Amplifier, Two-Wire Transmitter, 1 Amplifier, 150nA, DIP, 14Pins, -40℃, 85℃
Documentation

Datasheet

XTR101AG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XTR101AG Specifications

Attribute	Attribute Value

Part Number	XTR101AG
Manufacturer	TI
ChipWorker Part#	CW12784703
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP-14
Supply Voltage (DC)	11.6V (min)
Supply Current	20 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	100 dB
Input Offset Voltage	60 µV
Input Bias Current	150 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	90 dB
Supply Voltage (Max)	40 V
Supply Voltage (Min)	11.6 V
	expand all
Size-Length	20.07 mm
Size-Width	12.45 mm
Size-Height	4.07 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

The instrumentation amplifier XTR101AG differential amplifier, developed by Texas Instruments, can be a great alternative to a mono amplifier if you want a better quality sound outputted through both channels. This part has a temperature range of -40 °C to 85 °C. It has a single channel per chip. This device uses a single power supply.
