MOC3022S - LiteOn

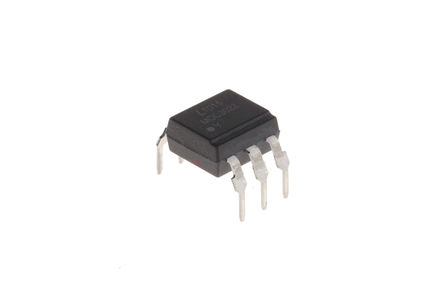

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MOC3022S
Manufacturer

LiteOn
ChipWorker Part#

CW4442692
Category

Optocoupler, Optoisolator
Package

SMD-6
Description

Optocoupler Triac AC-OUT 1CH 400V 6Pin PDIP SMD
Documentation

Datasheet

MOC3022S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MOC3022S Specifications

Attribute	Attribute Value

Part Number	MOC3022S
Manufacturer	LiteOn
ChipWorker Part#	CW4442692
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD-6
Input Voltage (DC)	1.15 V
Output Voltage	≤400 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.15 V
Power Dissipation	330 mW
Isolation Voltage	5000 Vrms
Holding Current	250 µA
Forward Current	50 mA
Output Voltage (Max)	280 VAC
Input Current (Min)	50 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	330 mW
	expand all
Size-Length	7.3 mm
Size-Width	6.5 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
