ADAU1772 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

15 points

Part No

ADAU1772
Manufacturer

ADI
ChipWorker Part#

CW760420470
Description

4ADC, 2DAC Low-Power Codec with Audio Processor
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy ADAU1772

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADAU1772 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADAU1772 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADAU1772
Manufacturer	ADI
ChipWorker Part#	CW760420470
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Product Description

Product Details

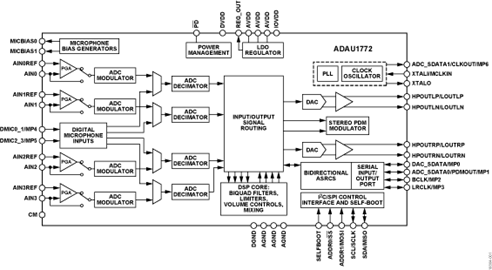

The ADAU1772 is a codec with four inputs and two outputs that incorporates a digital processing engine to perform filtering, level control, signal level monitoring, and mixing. The path from the analog input to the DSP core to the analog output is optimized for low latency and is ideal for noise cancelling headsets. With the addition of just a few passive components, a crystal, and an EEPROM for booting, the ADAU1772 provides a complete headset solution.
**APPLICATIONS**
Noise cancelling headsets, headsets, and headphones
BlueTooth ANC headsets, headsets, and headphones
Personal navigation devices
Digital still and video cameras
### Features and Benefits
Programmable audio processing engine
192 kHz processing path
Biquad filters, limiters, volume controls, mixing
Low latency, 24-bit ADCs and DACs
102 dB SNR (signal through PGA and ADC with A-weighted filter)
107 dB combined SNR (signal through DAC and headphone with A-weighted filter)
Serial port sample rates from 8 kHz to 192 kHz
38 μs analog-to-analog latency
Four single-ended analog inputs—configurable as microphone or line inputs
Stereo analog audio output—single-ended or differential, configurable as either line output or headphone driver
PLL supporting any input clock rate from 8 MHz to
27 MHz
Full-duplex, asynchronous sample rate converters (ASRCs)
See data sheet for additional features
