MOC3063 - LiteOn

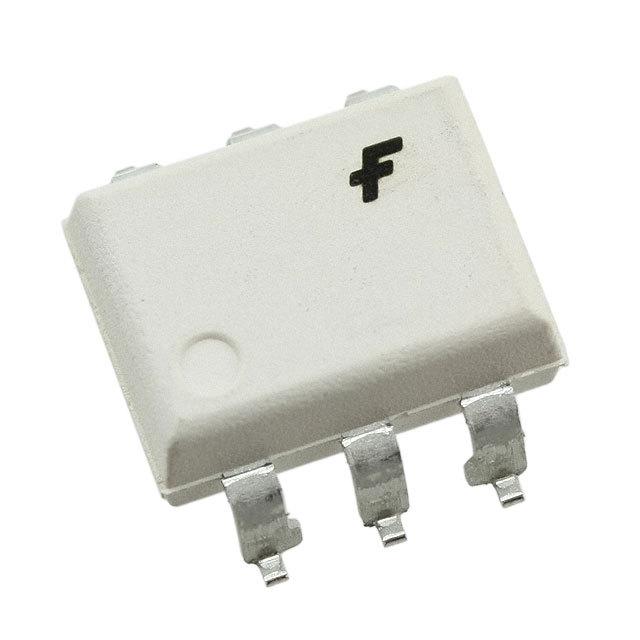

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MOC3063
Manufacturer

LiteOn
ChipWorker Part#

CW230871
Category

Optocoupler, Optoisolator
Package

DIP-6
Description

Optocoupler Triac AC-OUT 1CH 600V 6Pin PDIP
Documentation

Datasheet

MOC3063 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MOC3063 Specifications

Attribute	Attribute Value

Part Number	MOC3063
Manufacturer	LiteOn
ChipWorker Part#	CW230871
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Input Voltage (DC)	1.20 V
Output Voltage	≤600 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.2 V
Power Dissipation	250 mW
Isolation Voltage	5000 Vrms
Holding Current	400 µA
Forward Current	50 mA
Output Voltage (Max)	420 VAC
Input Current (Min)	50 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Length	7.3 mm
Size-Width	6.5 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

FEATURES
1\. This specification shall be applied to photocoupler. Model No. MOC3063 as an option.
2\. Applicable Models (Business dealing name)
* Dual-in-line package :
MOC3063-V : 1-channel type
* Wide lead spacing package :
MOC3063M-V : 1-channel type
* Surface mounting package :
MOC3063S-V : 1-channel type
* Tape and reel packaging :
MOC3063S TA1-V
3\. The relevant models are the models Approved by VDE
according to DIN VDE 0884:1992-06
Approved Model No.: MOC3063 / MOC3063M / MOC3063S /
VDE approved No.: 094722
(According to the specification DIN VDE 0884:1992-06)
* Operating isolation voltage VIORM
: 850V (Peak)
* Transient voltage VTR: 6000V (Peak)
* Pollution : 2 (According to VDE 0110-1 : 1997-04)
* Clearances distance (Between input and output) : 7.0mm (MIN.)
* Creepage distance (Between input and output) : 7.0mm (MIN.)
* Isolation thickness between input and output : 0.4mm (MIN.)
* Safety limit values Current (Isi) : 400mA (Diode side)
Power (Psi) : 700mW (Phototransistor side)
Temperature(Tsi) : 175°C

expand all
