MPT-65B ,Switching Power Supply, Power Switch - Mean Well

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

54 points

Part No

MPT-65B
Manufacturer

Mean Well
ChipWorker Part#

CW40749933
Category

Switching Power Supply, Power Switch
Description

AC-DC Power Supply Triple-OUT 5V/12V/-12V 7A/3.2A/0.7A 63.5W Medical 8Pin
Documentation

Datasheet
Ships from

Moscow
Наличие

5 pcs In Stock
Estimated Price

$ 35.63

Buy MPT-65B

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MPT-65B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MPT-65B Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MPT-65B
Manufacturer	Mean Well
ChipWorker Part#	CW40749933
Category	Switching Power Supply, Power Switch
Documentation	Datasheet
Mounting Style	Chassis
Number of Pins	8 Pin
Power Rating	63.5 W
Number of Outputs	3 Output
Output Voltage	5 VDC
Output Current	7 A
Output Power	63.5 W
Input Voltage (DC Max)	370 V
Input Voltage (DC Min)	127 V
Input Voltage (AC Max)	264 V
Input Voltage (AC Min)	90 V
Current Rating (Max)	1.6 A
Input Current (Min)	1.6 A
Input Power (Max)	63.5 W
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-10 ℃
Supply Voltage	90.264VAC, 127.370VDC
Input Voltage	90VAC ~ 264VAC, 127VDC ~ 370VDC
	expand all
Size-Length	127 mm
Size-Width	76 mm
Size-Height	27.94 mm
Weight	270 g
Operating Temperature	-10℃ ~ 55℃
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
HTS Code	8504409520
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

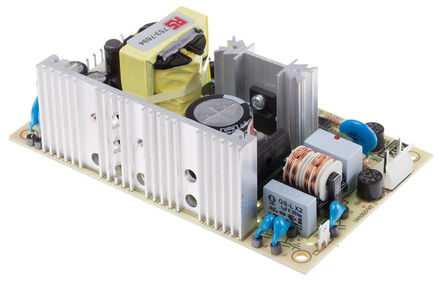

**Mean Well 65W Medical Open Frame AC-DC Power Supply - MPS-65, MPD-65, MPT-65 Series**
A range of single output, dual output and triple output 65W open frame AC-DC switch mode power supplies with universal AC input and medical approval to IEC60601-1. These open frame AC-DC switch mode medical power supplies have a compact design, high efficiency, low ripple and noise and are equipped with a built in EMI filter.
