MUR460RLG ,TVS Diode - ON Semiconductor

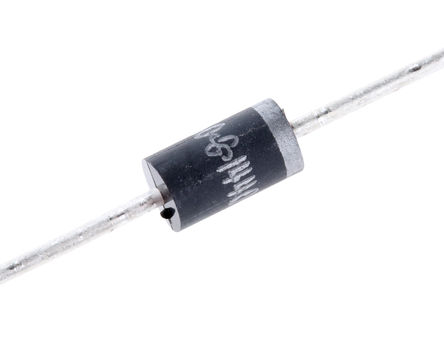

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

203 points

Part No

MUR460RLG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW336671
Category

TVS Diode
Package

DO-201AD
Description

ON SEMICONDUCTOR MUR460RLG Fast / Ultrafast Power Diode, 600V, 4A, Single, 1.28V, 75ns, 70A
Documentation

Datasheet
Ships from

Moscow
Наличие

5740 pcs In Stock
Estimated Price

$ 0.11

Buy MUR460RLG

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MUR460RLG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MUR460RLG Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MUR460RLG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW336671
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	600 V
Current Rating	4.00 A
Halogen Free Status	Halogen Free
Output Current	≤4.00 A
Load Current	4 A
Forward Voltage	1.28V @4A
Polarity	Standard
Thermal Resistance	53℃/W (RθJA)
Reverse recovery time	75 ns
Forward Current	4 A
Max Forward Surge Current (Ifsm)	70 A
Maximum Forward Voltage (Max)	1.28 V
Forward Current (Max)	4 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The MUR460RLG is a SWITCHMODE™ ultra-fast axial-lead Power Rectifier with moulded epoxy case. This state-of-the-art device is design for use in switching power supplies, inverters and as free-wheeling diodes.
Cathode indicated by polarity band
All external surfaces corrosion-resistant and terminal leads are readily solderable
Low forward voltage
Low leakage current
High temperature glass-passivated junction
