NDF11N50ZG - ON Semiconductor

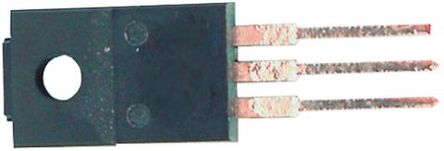

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NDF11N50ZG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW68921496
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FP N-CH 500V 12A
Documentation

Datasheet

NDF11N50ZG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NDF11N50ZG Specifications

Attribute	Attribute Value

Part Number	NDF11N50ZG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW68921496
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.48 Ω
Polarity	N-Channel
Power Dissipation	39 W
Threshold Voltage	3.9 V
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	12A
Rise Time	32 ns
Input Capacitance (Ciss)	1645pF @25V(Vds)
Input Power (Max)	39 W
Fall Time	23 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	39W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20

Product Description

The NDF11N50ZG is a N-channel Power MOSFET offers 500V drain source voltage and 7.4A continuous drain current.
Low ON-resistance
Low gate charge
ESD diode-protected gate
100% Avalanche tested
Halogen-free
-55 to 150°C Operating junction temperature range
