NE5532APSR - TI

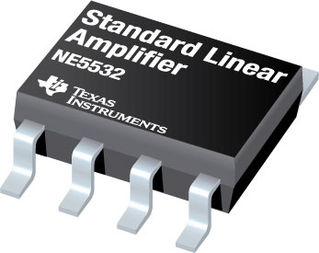

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NE5532APSR
Manufacturer

TI
ChipWorker Part#

CW2341707
Category

Operational Amplifier, OP Amp IC
Package

SOP-8
Description

IC OPAMP GP 10MHz 8SO
Documentation

Datasheet

NE5532APSR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NE5532APSR Specifications

Attribute	Attribute Value

Part Number	NE5532APSR
Manufacturer	TI
ChipWorker Part#	CW2341707
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOP-8
Supply Voltage (DC)	30.0 V
Supply Current	8 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	70 dB
Input Offset Drift	0.00 V/K
Bandwidth	10.0 MHz
Slew Rate	9.00 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	500 µV
Input Bias Current	200 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	10 MHz
Minimum CMRR Range	70 dB
	expand all
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
