NLAS7242MUTBG - ON Semiconductor

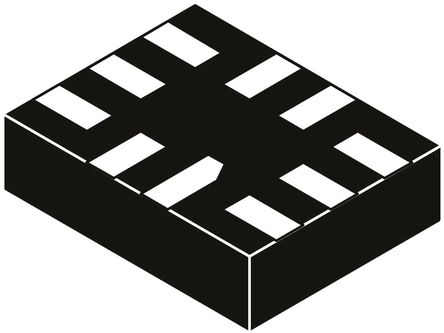

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NLAS7242MUTBG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3487662
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

UQFN-10
Description

ON SEMICONDUCTOR NLAS7242MUTBG Analogue Switch, DPDT, 2Channels, 8.6Ω, 1.65V to 4.5V, UQFN, 10Pins
Documentation

Datasheet

NLAS7242MUTBG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NLAS7242MUTBG Specifications

Attribute	Attribute Value

Part Number	NLAS7242MUTBG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3487662
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Halogen Free Status	Halogen Free
Number of Outputs	4 Output
Supply Current	1 µA
Number of Channels	2 Channel
Number of Positions	10 Position
Bandwidth	950 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	950 MHz
Supply Voltage	1.65V ~ 4.5V
	expand all
Size-Length	1.4 mm
Size-Width	1.8 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR

Product Description

USB Switch IC 1 Channel 10-UQFN (1.4x1.8)
