NRF9E5 - Nordic Semiconductor

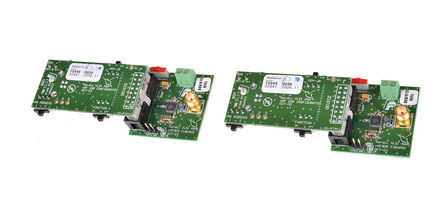

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NRF9E5
Manufacturer

Nordic Semiconductor
ChipWorker Part#

CW22106060
Category

RF Receiver
Package

QFN-32
Description

RF Transceiver GFSK 2.5V/3.3V 32Pin QFN EP Tray
Documentation

Datasheet

NRF9E5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NRF9E5 Specifications

Attribute	Attribute Value

Part Number	NRF9E5
Manufacturer	Nordic Semiconductor
ChipWorker Part#	CW22106060
Category	RF Receiver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	QFN-32
Frequency	433MHz,868MHz,915MHz
Power Dissipation	230 mW
Data Rate	50.0 kbps
Output Power	10 dBm
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	230 mW
Supply Voltage	1.9V ~ 3.6V
	expand all
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

IC RF TxRx + MCU General ISM < 1GHz 433MHz, 868MHz, 915MHz 32-VFQFN Exposed Pad
