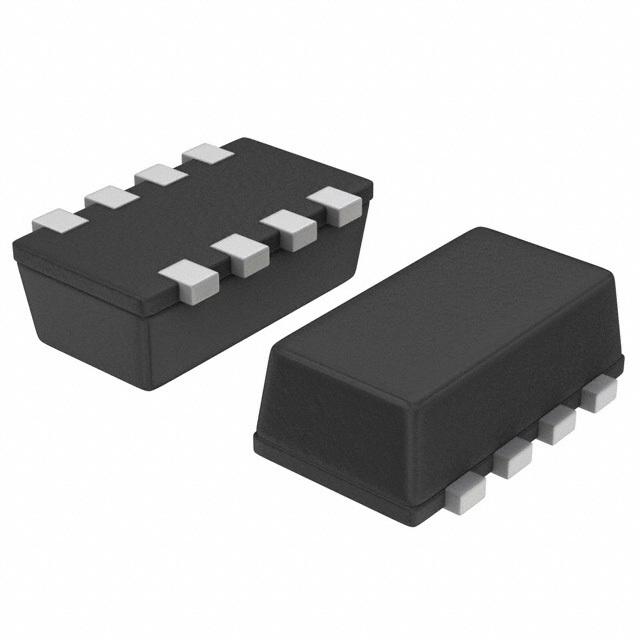

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTHS2101PT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW99739363
Category

MOSFET, MOSFET Transistor
Package

SMD-8
Description

Chip P-CH 8V 5.4A
Documentation

Datasheet

NTHS2101PT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTHS2101PT1G Specifications

Attribute	Attribute Value

Part Number	NTHS2101PT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW99739363
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package (SI)	3216
Case/Package	SMD-8
Voltage Rating (DC)	-8.00 V
Current Rating	-5.40 A
Drain to Source Resistance (on) (Rds)	34.0 mΩ
Polarity	P-Channel
Power Dissipation	1.3W (Ta)
Drain to Source Voltage (Vds)	8 V
Breakdown Voltage (Gate to Source)	±8.00 V
Continuous Drain Current (Ids)	7.50 A
Rise Time	28 ns
Input Capacitance (Ciss)	2400pF @6.4V(Vds)
Input Power (Max)	1.3 W
Fall Time	60 ns
Power Dissipation (Max)	1.3W (Ta)
	expand all
Size-Length	3.2 mm
Size-Width	1.6 mm
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Features • Low Profile (<1.1 mm) Allows it to Fit Easily into Extremely Thin Environments such as Portable Electronics • Designed to Provide Low RDS(on) at Gate Voltage as Low as 1.8 V, the Operating Voltage used in many Logic ICs in Portable Electronics • Simplifies Circuit Design since Additional Boost Circuits for Gate Voltages are not Required • Operated at Standard Logic Level Gate Drive, Facilitating Future Migration to Lower Levels using the same Basic Topology • Pb−Free Package is Available
