HD4850 ,Solid State Relay - Crydom
The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
147 points
-
Part NoHD4850
-
ManufacturerCrydom
-
ChipWorker Part#CW5524293
-
CategorySolid State Relay
-
PackageHockey Puck
-
DescriptionRelay SSR 2mA 32V DC-IN 50A 530V AC-OUT 4Pin
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие180 pcs In Stock
-
Estimated Price$ 84.93
Payment Methods and Delivery
{{ estimate }}
Buy HD4850
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
HD4850 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
HD4850 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | HD4850 | |
| Manufacturer | Crydom | |
| ChipWorker Part# | CW5524293 | |
| Category | Solid State Relay | |
| Documentation | Datasheet | |
| Mounting Style | Panel, Screw | |
| Number of Pins | 4 Pin | |
| Case/Package | Hockey Puck | |
| Current Rating | 50 A | |
| Output Voltage | 48V ~ 530V | |
| Output Current | 50000 mA | |
| Contacts Type | SPST-NO | |
| Load Current | 50 A | |
| Input Current | 12 mA | |
| Power Dissipation | 500 mW | |
| Resistance | 1500 Ω | |
| Isolation Voltage | 4000 v | |
| Input Voltage (Max) | 32 V | |
| Output Voltage (Max) | 530 V | |
| Output Current (Max) | 50 A | |
| Input Current (Min) | 12 mA | |
| Load Current (Max) | 50 A | |
| Load Current (Min) | 40 mA | |
| Operating Temperature (Max) | 80 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Voltage Rating | 530 VAC | |
| Operating Voltage (Min) | 48 Vrms | |
| Operating Voltage (Max) | 530 Vrms | |
| Input Voltage | 3VDC ~ 32VDC | |
| expand all | ||
| Size-Length | 58.4 mm | |
| Size-Width | 22.9 mm | |
| Size-Height | 23 mm | |
| Operating Temperature | -40℃ ~ 80℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Bulk | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| HTS Code | 8536490080 | |
| ECCN Code | EAR99 |

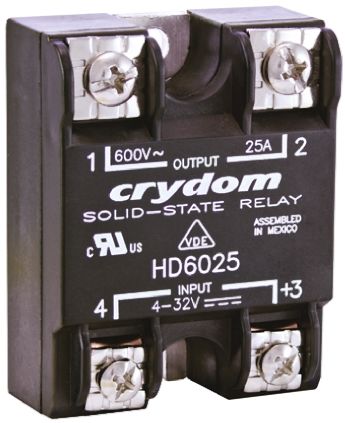

Similar & Replacement Parts
Similar products
Product Description
- The HD4850 is a Solid State Relay with aluminium base plate, UL94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This HD48-series panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barrier. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
- Epoxy-free design
- AC or DC Control
- SCR output for heavy industrial loads
- 1.15Vrms Maximum on-state voltage drop
- Current regulated nominal input impedance
- 4000Vrms Dielectric strength
- 1/2 cycle ms Turn-on/off maximum time
- -40 to 80°C Ambient operating temperature range
- Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
