OPB607A - TT Electronics/Optek Technology

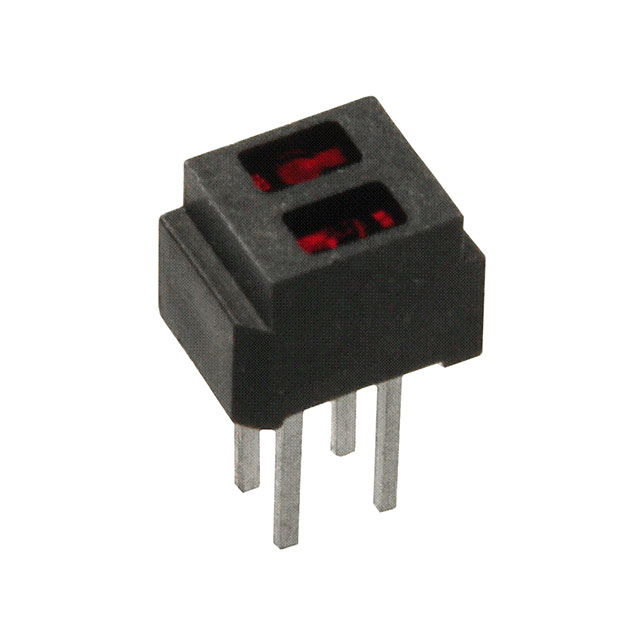

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoOPB607A
-
ManufacturerTT Electronics/Optek Technology
-
ChipWorker Part#CW35063893
-
CategoryPhotoelectric Sensor
-
PackagePCB Mount
-
DescriptionDiffuse Photoelectric Sensor, 2.79mm Min, 2.79mm Max, 25mA, 1Channel, Rectangular, Through Hole Mount, ROHS COMPLIANT PACKAGE-2
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
OPB607A Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
OPB607A Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | OPB607A |
| Manufacturer | TT Electronics/Optek Technology |
| ChipWorker Part# | CW35063893 |
| Category | Photoelectric Sensor |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | PCB Mount |
| Voltage Rating (DC) | 15.0 V |
| Operating Voltage | 1.70 V |
| Output Voltage | 15.0 V, 15.0 V (max) |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.7 V |
| Wavelength | 935 nm |
| Input Current | 20.0 mA |
| Peak Wavelength | 935 nm |
| Power Dissipation | 75 mW |
| Breakdown Voltage (Collector to Emitter) | 15 V |
| Forward Current | 50 mA |
| Forward Current (Max) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 75 mW |
| expand all | |
| Size-Length | 6.1 mm |
| Size-Width | 4.39 mm |
| Size-Height | 4.5 mm |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- Description:
- OPB606consists of an infrared Light Emitting Diode (LED) and an NPN silicon phototransistor which are mounted “side-by-side” on parallel axes in a black opaque plastic housing.
- The OPB607consists of an infrared Light Emitting Diode (LED) and an NPN silicon photodarlington which are mounted “side-by-side” on parallel axes in a black plastic housing.
- Features:
- • Choice of phototransistor (OPB606) or photodarlington (OPB607) output
- • Unfocused for sensing diffuse surface
- • Low cost plastic housing
- • Filtered (OPB606, OPB607)
- Applications:
- • Non-contact reflective object sensor
- • Assembly line automation
- • Machine automation
- • Machine safety
- • End of travel sensor
- • Door sensor
