OPB931W51Z - TT Electronics/Optek Technology

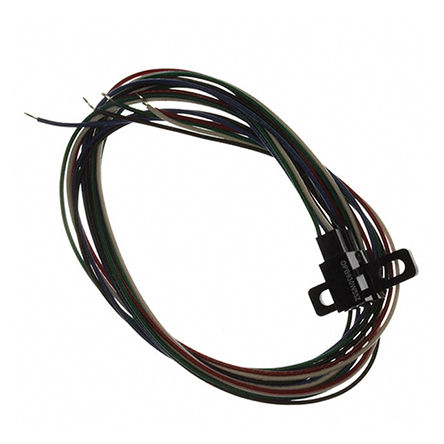

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OPB931W51Z
Manufacturer

TT Electronics/Optek Technology
ChipWorker Part#

CW44202136
Category

Optical Sensor
Package

Pre-Wired
Description

OPTEK TECHNOLOGY OPB931W51Z Transmissive Photo Interrupter, Open Collector, Panel / Chassis, 3.18mm, 1.27mm, 40mA, 2V
Documentation

Datasheet

OPB931W51Z Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OPB931W51Z Specifications

Attribute	Attribute Value

Part Number	OPB931W51Z
Manufacturer	TT Electronics/Optek Technology
ChipWorker Part#	CW44202136
Category	Optical Sensor
Documentation	Datasheet
Mounting Style	Chassis
Number of Pins	5 Pin
Case/Package	Pre-Wired
Output Voltage	2.40 V
Supply Current	15 mA
Forward Voltage	1.7 V
Input Current	15.0 mA
Power Dissipation	300 mW
Rise Time	70 ns
Forward Current	40 mA
Forward Current (Max)	40 mA
Fall Time	70 ns
Fall Time (Max)	70 ns
Fall Time (Max)	70 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
Supply Voltage	4.75V ~ 5.25V
	expand all
Operating Temperature	-40℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Description:
The OPB930 and OPB940 series of Photologic® photo integrated circuit switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.125” (3.18 mm) wide slot, a user can specify the type and polarity of TTL output, discrete shell material, aperture width and either 0.350” (8.9 mm) long pins (L Series) or 24” (610 mm) AWG, UL listed wire leads (W Series).
Features:
• Choice of aperture size
• Choice of output configurations
• Choice of opaque or IR transmissive shell
• Choice of pins (L) or wires (W)
• 0.125” (3.18 mm) slot width
• 0.320” (8.128 mm) lead spacing for PCBoard (side mounting)
• Data rates to 250 kBaud
