TL432IPK ,Voltage Reference - TI

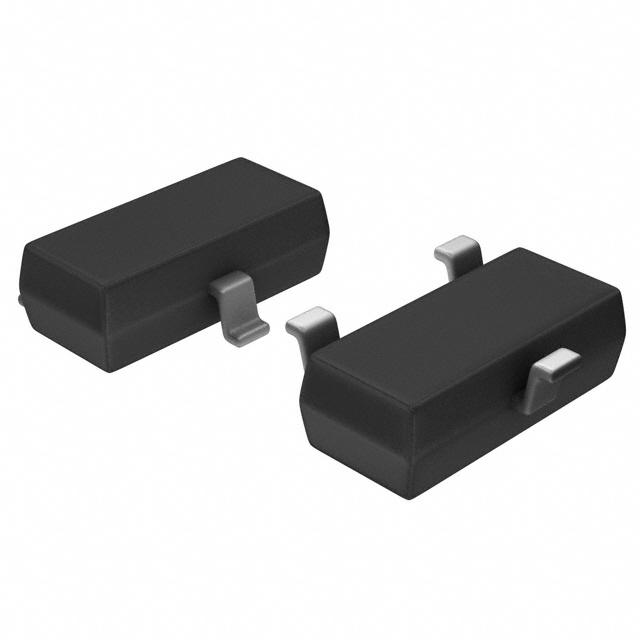

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

102 points

Part No

TL432IPK
Manufacturer

TI
ChipWorker Part#

CW12626003
Category

Voltage Reference
Package

SOT-89-3
Description

Shunt Voltage Reference Adjustable Precision Shunt Regulator V-Ref Adjustable 2.495V to 36V 100mA 4Pin(3+Tab) SOT-89 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

545 pcs In Stock
Estimated Price

$ 0.1

Buy TL432IPK

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TL432IPK Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TL432IPK Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TL432IPK
Manufacturer	TI
ChipWorker Part#	CW12626003
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Capacitance Tolerance	±2.2 %
Input Voltage (DC)	36.0V (max)
Output Voltage	2.495V ~ 36V
Output Current	100 mA
Number of Channels	1 Channel
Input Voltage (Max)	37 V
Output Voltage (Max)	36 V
Output Voltage (Min)	2.495 V
Output Current (Max)	100 mA
Accuracy	±2 %
Input Voltage	37 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Temperature Coefficient	±92 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

Description
The TL431 and TL432 devices are three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. These devices have a typical output impedance of 0.2 Ω.
Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies. The TL432 device has exactly the same functionality and electrical specifications as the TL431 device, but has different pinouts for the DBV, DBZ, and PK packages.
Features
• Reference Voltage Tolerance at 25°C
– 0.5% (B Grade)
– 1% (A Grade)
– 2% (Standard Grade)
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to 125°C
• Typical Temperature Drift (TL431B)
– 6 mV (C Temp)
– 14 mV (I Temp, Q Temp)
• Low Output Noise
• 0.2-Ω Typical Output Impedance
• Sink-Current Capability: 1 mA to 100 mA
Applications
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator with Integrated Reference
