OX101KE - Ohmite

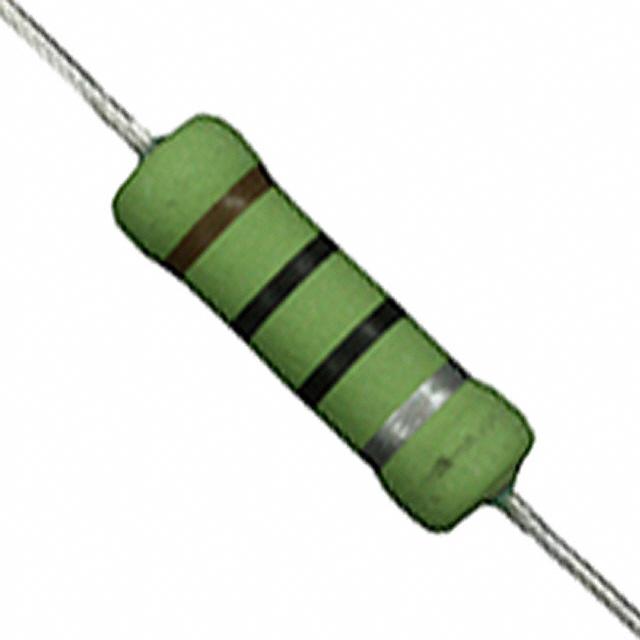

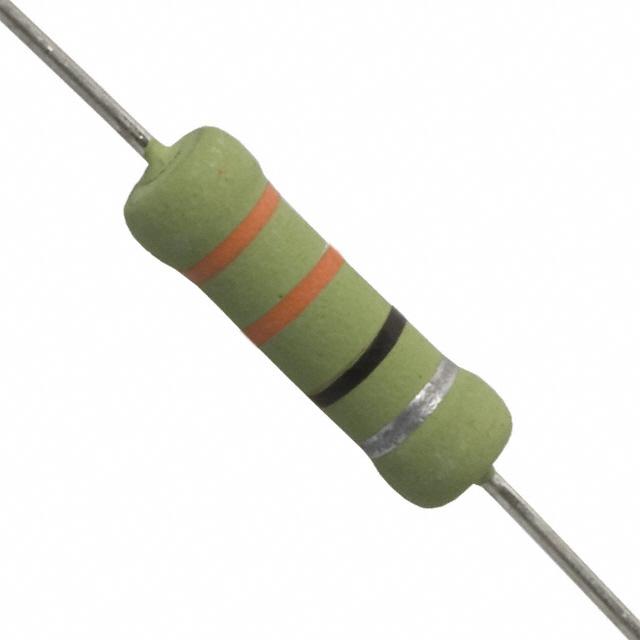

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OX101KE
Manufacturer

Ohmite
ChipWorker Part#

CW11455074
Category

Through-Hole Resistor
Description

100Ω ±10% 1W -1000/-1600ppm/℃ Φ5.50mm
Documentation

Datasheet

OX101KE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OX101KE Specifications

Attribute	Attribute Value

Part Number	OX101KE
Manufacturer	Ohmite
ChipWorker Part#	CW11455074
Category	Through-Hole Resistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Voltage Rating (DC)	300 V
Capacitance Tolerance	±10 %
Power Rating	1 W
Part Family	OX
Resistance	100 Ω
Resistance Tolerance	±10 %
Operating Temperature (Max)	220 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	300 V
	expand all
Size-Length	19 mm
Size-Diameter	5.50 mm
Lead Length	38.0 mm
Material	Ceramic
Operating Temperature	-40℃ ~ 220℃
Temperature Coefficient	-1000ppm/℃ ~ -1600ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8533100060
ECCN Code	EAR99

Product Description

**Specifications**
**Material Terminals:** Solder-coated copper terminal. **Coating:** UL-94 VO approved silicone. **Derating Linear:** From 100% @ +70°C to 0% @ +200°C. **Electrical Tolerance:** ±10% standard. **Power Rating:** Based on 70°C free air rating. **Temperature Coefficient:** –1300 ±300 ppm/°C.
**Features**
* Replaces 1 and 2 Watt Carbon Composition Resistors
* Meets High-Energy Density Demands
* High Peak Power
* 10% Tolerance
