P6KE200ARLG - ON Semiconductor

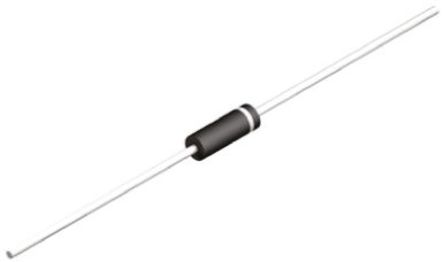

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P6KE200ARLG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW94959594
Category

TVS Diode
Package

017AA-01
Description

171V 600W
Documentation

Datasheet

P6KE200ARLG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P6KE200ARLG Specifications

Attribute	Attribute Value

Part Number	P6KE200ARLG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW94959594
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	017AA-01
Voltage Rating (DC)	200 V
Power Rating	600 W
Breakdown Voltage	190 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Clamping Voltage	274 V
Max Repetitive Reverse Voltage (Vrrm)	171V
Test Current	1 mA
Max Breakdown Voltage	210 V
Peak Pulse Power	600 W
Min Breakdown Voltage	190 V
Reverse Breakdown Voltage	190 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	expand all
Size-Length	8.89 mm
Size-Width	3.68 mm
Size-Height	3.68 mm
Size-Diameter	3.68 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR

Product Description

274V Clamp 2.2A (8/20µs) Ipp Tvs Diode Through Hole
