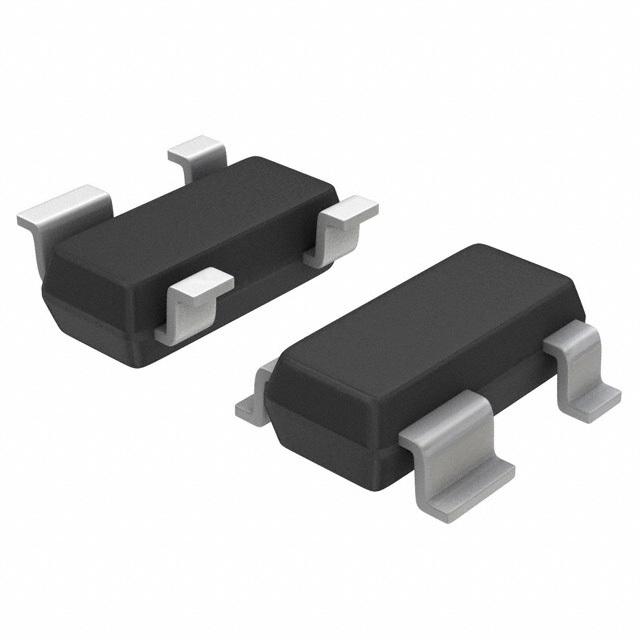

PACDN004SR - ON Semiconductor

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PACDN004SR
Manufacturer

ON Semiconductor
ChipWorker Part#

CW64406520
Category

TVS Diode
Package

TO-253-4
Description

ON SEMICONDUCTOR PACDN004SR ESD Protection Device, 2CH, SOT-143, 4Pins, 5.5V
Documentation

Datasheet

PACDN004SR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PACDN004SR Specifications

Attribute	Attribute Value

Part Number	PACDN004SR
Manufacturer	ON Semiconductor
ChipWorker Part#	CW64406520
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-253-4
Operating Voltage	5.5 V
Capacitance	5 pF
Halogen Free Status	Halogen Free
Number of Positions	4 Position
Clamping Voltage	13 V
Peak Pulse Power	0.22 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.07 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Clamp Ipp Tvs Diode Surface Mount SOT-143-4
