PAM2319AYAA - Diodes

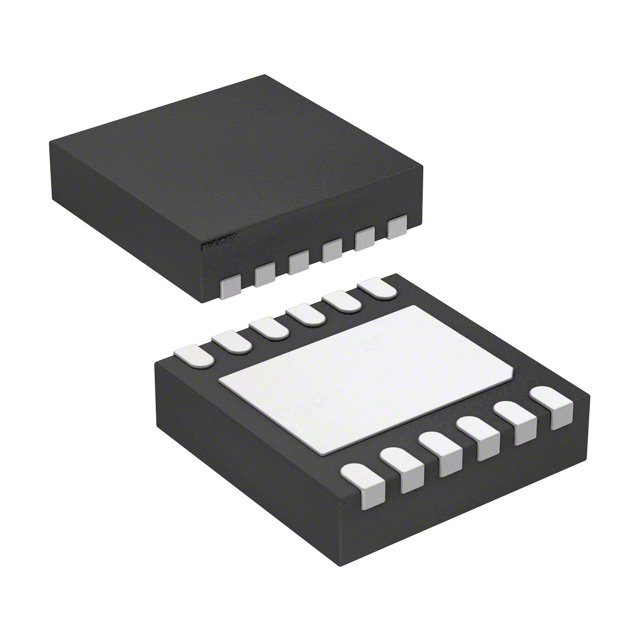

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PAM2319AYAA
Manufacturer

Diodes
ChipWorker Part#

CW53274050
Category

DC to DC Converter
Package

DFN-12
Description

Conv DC-DC 2.7V to 5.5V Step Down Dual-Out 1V to 3.3V 12Pin WDFN EP T/R
Documentation

Datasheet

PAM2319AYAA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PAM2319AYAA Specifications

Attribute	Attribute Value

Part Number	PAM2319AYAA
Manufacturer	Diodes
ChipWorker Part#	CW53274050
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	DFN-12
Number of Outputs	2 Output
Output Voltage	1V ~ 3.3V
Output Current	1A, 2A
Switching Frequency	3MHz, 2.5MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.7V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Buck Switching Regulator IC Positive Adjustable 1V 2 Output 1A, 2A 12-WFDFN Exposed Pad
