PCA9559PW,118 ,Interface IC, Interface Controller - NXP

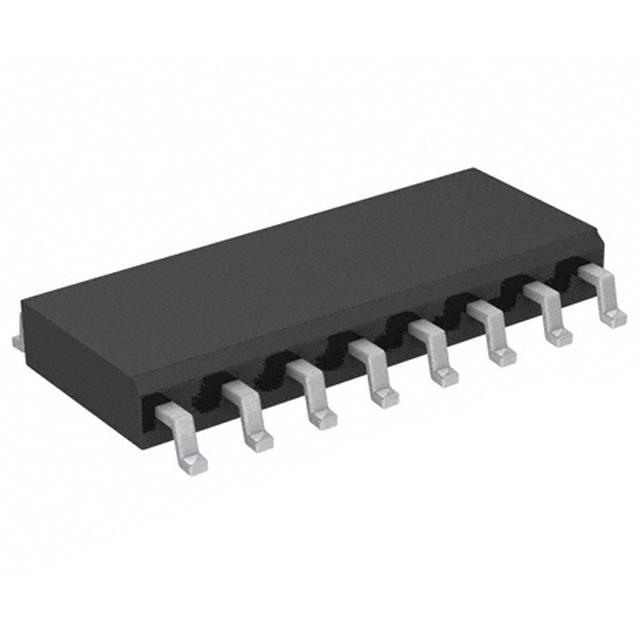

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

99 points

Part No

PCA9559PW,118
Manufacturer

NXP
ChipWorker Part#

CW33734963
Category

Interface IC, Interface Controller
Package

TSSOP-20
Description

5Bit multiplexed/1Bit latched 6Bit I2C EEPROM DIP switch
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.99

Buy PCA9559PW,118

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PCA9559PW,118 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PCA9559PW,118 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PCA9559PW,118
Manufacturer	NXP
ChipWorker Part#	CW33734963
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Current	10 mA
Number of Positions	20 Position
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Weight	95.54 mg
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

Overview
The PCA9559 is a 20-pin CMOS device consisting of one 6-bit non-volatile EEPROM registers, 5 hardware pin inputs and a 5-bit multiplexed output with one latched EEPROM bit. It is used for DIP switch-free or jumper-less system configuration and supports Mobile and Desktop VID Configuration, where 2 preset values (1 set of internal non-volatile registers and 1 set of external hardware pins) set processor voltage for operation in either performance or deep sleep modes. The PCA9559 is also useful in server and telecom/networking applications when used to replace DIP switches or jumpers, since the settings can be easily changed via I²C/SMBus without having to power down the equipment to open the cabinet. The non-volatile memory retains the most current setting selected before the power is turned off.
The PCA9559 typically resides between the CPU and Voltage Regulator Module (VRM) when used for CPU VID (Voltage IDentification code) configuration. It is used to bypass the CPU-defined VID values and provide a different set of VID values the VRM, if an increase in the CPU voltage is desired. An increase in CPU voltage combined with an increase in CPU frequency leads to a performance boost of up to 7.5pct. Lower CPU voltage reduces power consumption.
The PCA9559 has 2 address pins allowing up to 4 devices to be placed on the same I²C-bus or SMBus.
MoreLess
## Features
* 5-bit 2-to-1 multiplexer, 1-bit latch DIP switch
* 6-bit internal non-volatile register
* Internal non-volatile register programmable and readable via I²C-bus
* Override input forces all outputs to logic 0
* 5 open drain multiplexed outputs
* 1 open drain non-multiplexed (latched) output
* 5 V and 2.5 V tolerant inputs
* Useful for ?jumperless? configuration of PC motherboards
* 2 address pins, allowing up to 4 devices on the I²C-bus
* ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101
* Latch-up testing is done to JESDEC Standard JESD78 which exceeds 100 mA
