PF480D25 - Crydom

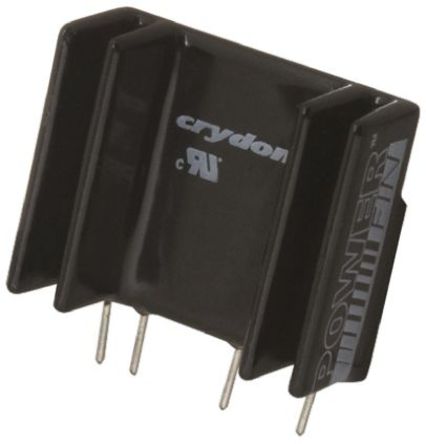

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoPF480D25
-
ManufacturerCrydom
-
ChipWorker Part#CW9985883
-
CategorySolid State Relay
-
PackageSIP-4
-
DescriptionCRYDOM PF480D25 Solid State Relay, PowerFin / PF Series, SIP, SPST-NO, 25A, PCB, Through Hole, 48Vrms, 660Vrms
-
DocumentationDatasheet
