PHE450MD6220JR06L2 ,Film Capacitor - KEMET Corporation

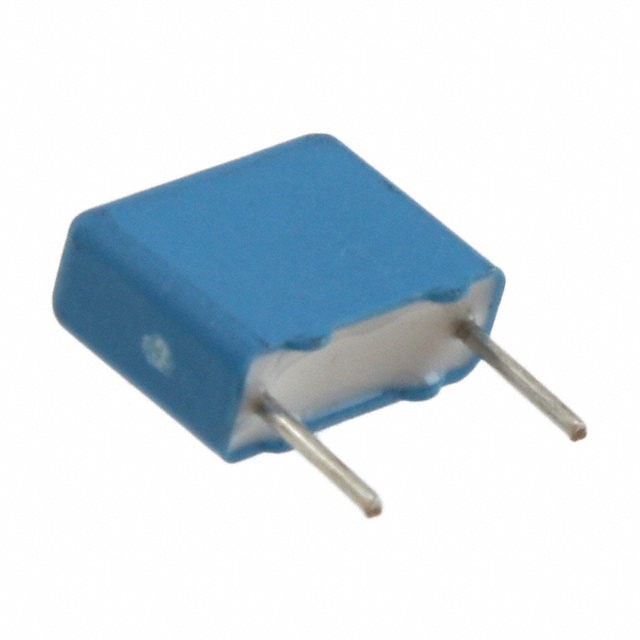

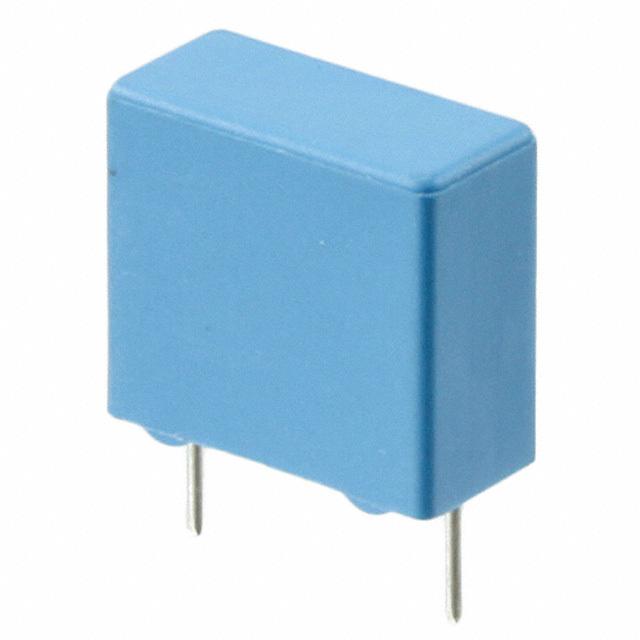

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

83 points

Part No

PHE450MD6220JR06L2
Manufacturer

KEMET Corporation
ChipWorker Part#

CW11973503
Category

Film Capacitor
Package

Radial, Box
Description

Cap Film 0.22uF 630V PP 5% (26 X 9 X 18.5mm) Radial 22.5mm 105℃ Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

70 pcs In Stock
Estimated Price

$ 1.9

Buy PHE450MD6220JR06L2

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PHE450MD6220JR06L2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PHE450MD6220JR06L2 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PHE450MD6220JR06L2
Manufacturer	KEMET Corporation
ChipWorker Part#	CW11973503
Category	Film Capacitor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Box
Pin Pitch	22.5 mm
Voltage Rating (DC)	630 V
Voltage Rating (AC)	400 V
Capacitance	0.22 µF
Capacitance Tolerance	±5 %
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	630 V
	expand all
Size-Length	26 mm
Size-Width	9 mm
Size-Height	18.5 mm
Lead Length	6 mm
Dielectric Material	Polypropylene
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The PHE450 series capacitors from Kemet are radial leaded metalized polypropylene film capacitors. These capacitors are constructed with polypropylene dielectric and double metalized polyester film electrodes. The capacitor is encapsulated in self extinguishing resin in a box of material meeting the requirements of UL94 V-0 standard. Typical applications include high frequency applications with high current stress such as deflection circuits in televisions and protection circuits in switched mode power supply (SMPS) and electronic ballasts.
Capacitance values ranges from 0.33nF to 10µF
Voltage rating available from 250VDC to 3000VDC or 180VAC to 1000VAC
Lead spacing of 7.5mm to 37.5mm
Capacitance tolerance is ±5%
Operating temperature range from -55˚C to 105˚C
