POWERSTEP01 ,MOSFET, MOSFET Transistor - ST Microelectronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

148 points

Part No

POWERSTEP01
Manufacturer

ST Microelectronics
ChipWorker Part#

CW2077643
Category

MOSFET, MOSFET Transistor
Package

PowerVQFN-89
Description

Bipolar Stepper Motor Driver 7.5V to 85V 11Pin VFQFPN Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 12.23

Buy POWERSTEP01

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

POWERSTEP01 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

POWERSTEP01 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	POWERSTEP01
Manufacturer	ST Microelectronics
ChipWorker Part#	CW2077643
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	89 Pin
Case/Package	PowerVQFN-89
Number of Outputs	1 Output
Output Current	10 A
Number of Positions	89 Position
Output Current (Max)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.3V, 5V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	7.5 V
Input Voltage	7.5 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

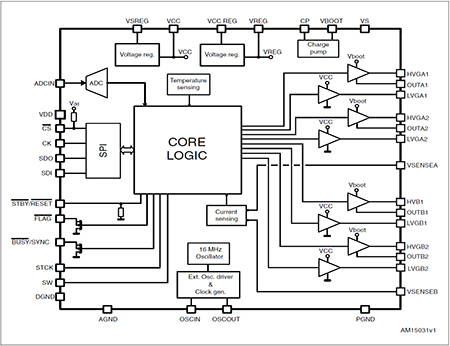

The powerSTEP01 is a a system-in-package integrating 8 N-channel 16 mΩ MOSFETs for stepper applications up to 85 V with a SPI programmable controller, providing fully digital control of the motion through a speed profile generation and positioning calculations.
It integrates a dual low RDS(on)full bridge with embedded non-dissipative overcurrent protection. The device can operate with both voltage mode driving and advanced current control fitting different application needs. The digital control core can generate user defined motion profiles with acceleration, deceleration, speed or a target position easily programmed through a dedicated register set. All application commands and data registers, including those used to set analog values (i.e. current protection trip point, deadtime, PWM frequency, etc.) are sent through a standard 5-Mbit/s SPI. A very rich set of protections (thermal, low bus voltage, overcurrent and motor stall) make the powerSTEP01 “bullet proof”, as required by the most demanding motor control applications.
**Key Features**
Power system-in-package integrating a programmable microstepping controller and 8 N-channel power MOSFETs.
Operating voltage: 7.5 V - 85 V
Dual full bridge with RDS(on) = 16 mΩ
10 Ar.m.s. maximum output current
Adjustable output slew rate
Programmable speed profile
Up to 1/128 microstepping
Sensorless stall detection
Integrated voltage regulators
SPI interface
Low quiescent standby currents
Programmable non-dissipative overcurrent protection
Overtemperature protection
