QSE113 - Fairchild

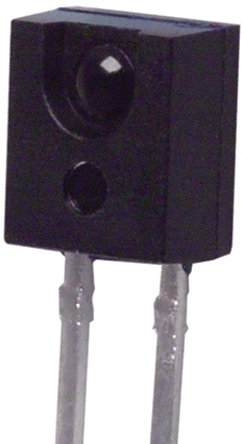

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

QSE113
Manufacturer

Fairchild
ChipWorker Part#

CW11800286
Category

Phototransistor
Package

Side Looking
Description

FAIRCHILD SEMICONDUCTOR QSE113 Phototransistor, 880nm, 25°, 0.1W(1/10W), 2Pins, Side Looking
Documentation

Datasheet

QSE113 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

QSE113 Specifications

Attribute	Attribute Value

Part Number	QSE113
Manufacturer	Fairchild
ChipWorker Part#	CW11800286
Category	Phototransistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Side Looking
Supply Voltage (DC)	5.00 V
Voltage Rating (DC)	30.0 V
Operating Voltage	5.00 V
Output Voltage	≤30.0 V
Breakdown Voltage	30.0 V
Number of Channels	1 Channel
Number of Positions	2 Position
Wavelength	880 nm
Viewing Angle	25°
Peak Wavelength	880 nm
Polarity	NPN
Power Dissipation	100 mW
Power Consumption	100 mW
Rise Time	8 µs
Output Power	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Input Power (Max)	100 mW
Fall Time	8 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	expand all
Size-Length	4.44 mm
Size-Width	2.54 mm
Size-Height	5.08 mm
Lead Length	12.7 mm
Material	Silicon
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The QSE113 from Fairchild is a NPN silicon infrared phototransistor encapsulated in black plastic sidelooker package.
Daylight filter
High sensitivity
Blue dot marking on the top side
Power dissipation of 100mW
Operating temperature range from -40°C to 100°C
Peak sensitivity of 880nm
