TNY266GN - Power Integrations

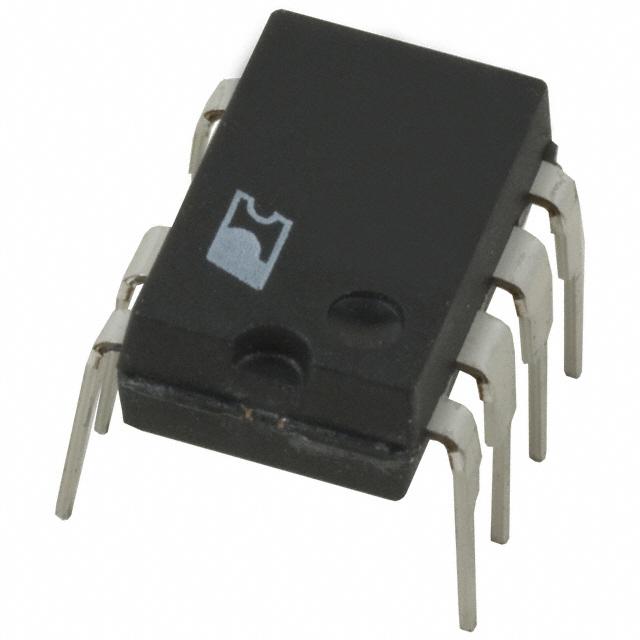

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TNY266GN
Manufacturer

Power Integrations
ChipWorker Part#

CW9859567
Category

AC to DC Converter, AC/DC Power Module
Package

SMD-8
Description

AC-DC Converters 9.5W 85-265VAC 15W/230VAC
Documentation

Datasheet

TNY266GN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TNY266GN Specifications

Attribute	Attribute Value

Part Number	TNY266GN
Manufacturer	Power Integrations
ChipWorker Part#	CW9859567
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SMD-8
Frequency	132 kHz
Supply Voltage (DC)	265 V
Power Rating	15 W
Number of Outputs	1 Output
Output Voltage	700 V
Output Current	560 mA
Breakdown Voltage	700 V
Supply Current	265 µA
Number of Positions	7 Position
Number of Regulated Outputs	1 Output
Output Power	9.5 W
Switching Frequency	132 kHz
Duty Cycle	65 %
Maximum Duty Cycle	68 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	265 VAC
Input Voltage	85.265 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The TNY266GN is a 10W enhanced energy efficient low power Off-Line Switcher fully integrated auto-restart circuit safely limits output power during fault conditions such as output short-circuit or open loop and reducing component count. TinySwitch-II integrates a 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry. In addition the TinySwitch-II device incorporates auto-restart, line under-voltage sense and frequency jittering. An innovative design minimizes audio frequency components in the simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction.
Simple design practically eliminates rework in manufacturing
Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer
Lowest component count switcher solution
Simple ON/OFF control - no loop compensation needed
