R6024ENX - ROHM Semiconductor

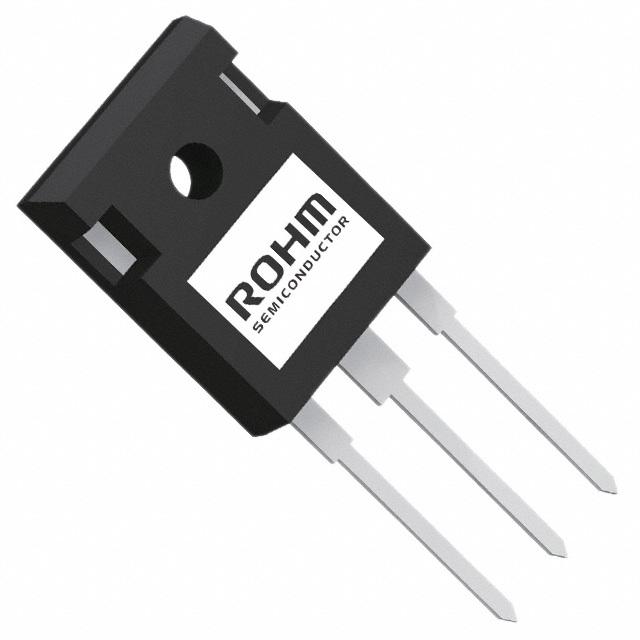

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

R6024ENX
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW65153136
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FM N 600V 24A 0.15Ω
Documentation

Datasheet

R6024ENX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

R6024ENX Specifications

Attribute	Attribute Value

Part Number	R6024ENX
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW65153136
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.15 Ω
Polarity	N-Channel
Power Dissipation	74 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	24A
Rise Time	50 ns
Input Capacitance (Ciss)	1650pF @25V(Vds)
Fall Time	50 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	40W (Tc)
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

N-Channel 600V 24A (Tc) 40W (Tc) Through Hole TO-220FM
