RAPC722X - Switchcraft / Conxall

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RAPC722X
Manufacturer

Switchcraft / Conxall
ChipWorker Part#

CW7205863
Category

Power Entry Module
Description

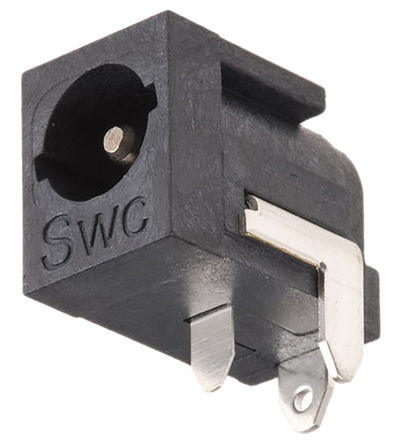

SWITCHCRAFT RAPC722X DC Power Connector, Jack, 5A, 2mm, Through Hole Mount
Documentation

Datasheet

RAPC722X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RAPC722X Specifications

Attribute	Attribute Value

Part Number	RAPC722X
Manufacturer	Switchcraft / Conxall
ChipWorker Part#	CW7205863
Category	Power Entry Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Contacts	2 Contact
Gender	Female
Contact Plating	Nickel
Voltage Rating (AC)	250 V
Current Rating	5 A
Insulation Resistance	30 MΩ
Number of Mating Cycles	5000 Cycle
Mounting Angle	90.0 °
Current Rating (Max)	5 A
Maximum Contact Resistance (Max)	30 mΩ
	expand all
Size-Height	11 mm
Color	Black
Contact Material	Brass
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The RAPC722X is a right angle DC Power Jack for mounting on PC boards with a 0.080" centre pin size.
Thermoplastic Material
Tin-plated Copper Alloy Sleeve
Nickel-plated Copper Alloy Tip
<50mR Contact Resistance
<100mR Insulation Resistance
