RC16M23K - Souriau

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RC16M23K
Manufacturer

Souriau
ChipWorker Part#

CW8367903
Category

Connector Accessory
RoHS

Lead free / RoHS Compliant
Description

Contact; Female; 20 to 16AWG; 2.55in.; 1.8in.
Documentation

Datasheet

RC16M23K Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RC16M23K Specifications

Attribute	Attribute Value

Part Number	RC16M23K
Manufacturer	Souriau
ChipWorker Part#	CW8367903
Category	Connector Accessory
Documentation	Datasheet
Gender	Female
Wire Gauge	16AWG ~ 20AWG
Contact Plating	Gold
Current Rating	13 A
Contact Resistance	3.00 mΩ
Current Rating (Max)	13 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	3 mΩ
	expand all
Size-Length	18.2 mm
Contact Material	Copper Alloy
Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

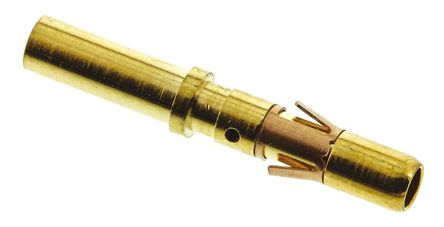

The RC16M23K from Souriau is a green colour, size 16 solid machined socket contact for TRIM TRIO connectors. This is precision solid machined crimp snap-in contact for heavy duty top performance requirements. This contact is tempered, heat treated beryllium copper locking springs assure proper locking and alignment of contacts in the housing.
Wire size range from 20AWG to 16AWG (0.52mm² to 1.5mm²)
Maximum wire diameter of 1.82mm
High conductive copper alloy with gold over nickel plate finish
0.0625inch (1.6mm) diameter contacts
Closed entry design to prevent probe damage
Current rating of 13A
Contact resistance is less than or equal to 3mohm
Operating voltage of 750Vrms
Easy mounting and dismounting
