RN2402 - Toshiba

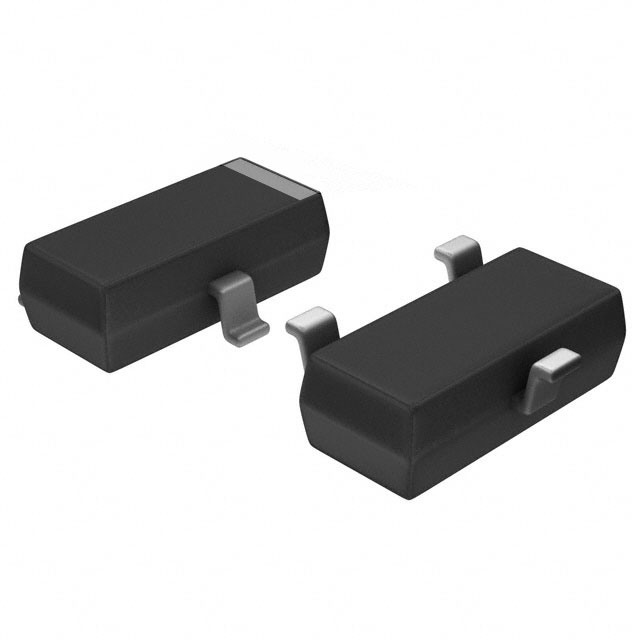

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RN2402
Manufacturer

Toshiba
ChipWorker Part#

CW68970273
Category

Transistor
Package

S-Mini
Description

S-Mini PNP 50V 100mA
Documentation

Datasheet

RN2402 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RN2402 Specifications

Attribute	Attribute Value

Part Number	RN2402
Manufacturer	Toshiba
ChipWorker Part#	CW68970273
Category	Transistor
Documentation	Datasheet
Case/Package	S-Mini
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
	expand all
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Silicon PNP Epitaxial Type (PCT Process)
Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Complementary to RN1401~1406
