RT425012 - TE Connectivity

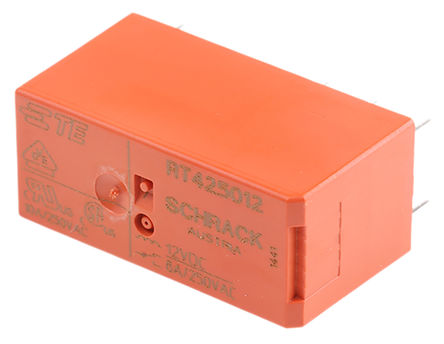

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RT425012
Manufacturer

TE Connectivity
ChipWorker Part#

CW44710615
Category

Power Relay
Package

DIP
Description

Power Relay 12VDC 8A DPDT (( 29mm 12.7mm 15.7mm)) Through Hole
Documentation

Datasheet

RT425012 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RT425012 Specifications

Attribute	Attribute Value

Part Number	RT425012
Manufacturer	TE Connectivity
ChipWorker Part#	CW44710615
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	DIP
Current Rating	8 A
Coil Voltage	12 VDC
Coil Current	33.3 mA
Coil Resistance	360 Ω
Current Rating (Max)	8 A
Coil Voltage (DC)	12 V
Switching Current (Max)	8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
	expand all
Size-Length	29 mm
Size-Height	15.7 mm
Contact Material	Silver Nickel, Gold
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536410050
ECCN Code	EAR99

Product Description

**TE Connectivity RT1 and RT2 Series PCB Power Relays**
RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and coil voltages. RT1 PCB power relays are 12A, have 3.5mm pinning and are flux proof RT2 PCB power relays are 12A, have 5mm pinning and are flux proof RT3 PCB power relays are 16A, have 5mm pinning and are flux proor RTB PCB power relays are 12A, have 3.5mm pinning and are wash tight RTD PCB power relays are 16A, have 5mm pinning and are wash tight RT4 PCB power relays are 8A, have 5mm pinning and are flux proof RTE PCB power relays are 8A, have 5mm pinning and are wash tight
