RXG12BD - Schneider Electric

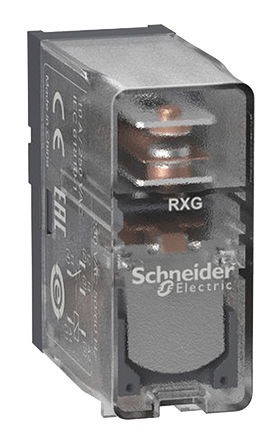

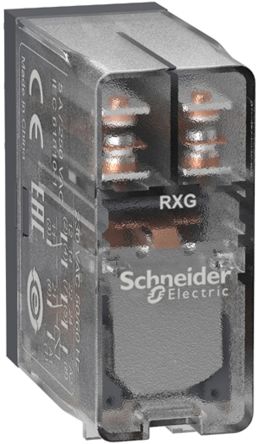

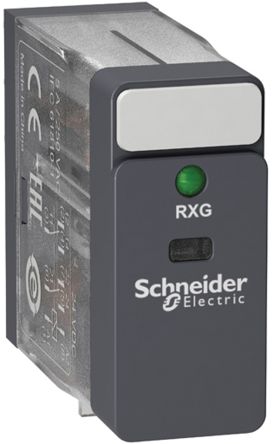

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RXG12BD
Manufacturer

Schneider Electric
ChipWorker Part#

CW21474765
Category

Power Relay
Package

-
Description

Relay: electromagnetic; SPDT; Ucoil:24VDC; 10A/250VAC; 10A/30VDC
Documentation

Datasheet

RXG12BD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RXG12BD Specifications

Attribute	Attribute Value

Part Number	RXG12BD
Manufacturer	Schneider Electric
ChipWorker Part#	CW21474765
Category	Power Relay
Documentation	Datasheet
Case/Package	-
Current Rating	10 A
Contacts Type	SPDT
Coil Voltage	24 VDC
Coil Resistance	1.1 kΩ
Coil Power	530 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	13 mm
Size-Height	37.1 mm
Contact Material	Silver Alloy
Operating Temperature	-40℃ ~ 70℃
RoHS	RoHS Compliant

Product Description

**Zelio RXG Interface Relays**
The Zelio RXG interface relay is widely used in PLC interface application for its reliable installlation, easy test & maintenance, slim and spacing saving features.
