SD1477 ,BJT Transistor, BJT - ST Microelectronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

60 points

Part No

SD1477
Manufacturer

ST Microelectronics
ChipWorker Part#

CW160178603
Category

BJT Transistor, BJT
Package

M-111
Description

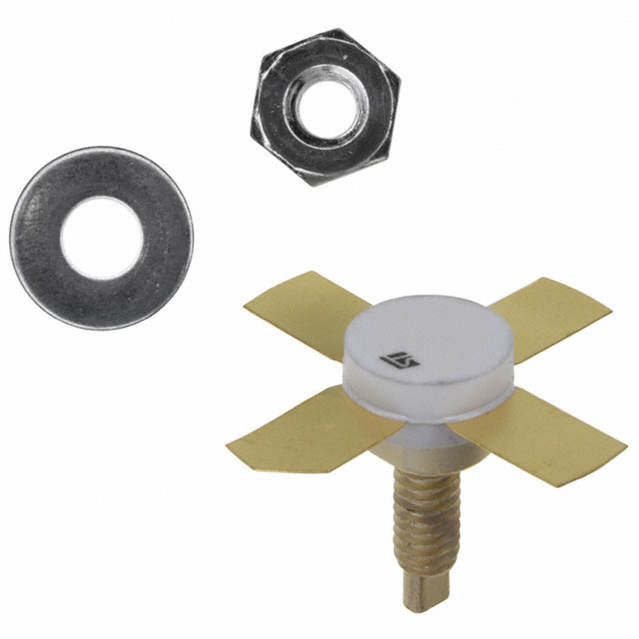

Trans RF BJT NPN 18V 20A 6Pin Case M-111 Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

310 pcs In Stock
Estimated Price

$ 62.54

Buy SD1477

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SD1477 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SD1477 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SD1477
Manufacturer	ST Microelectronics
ChipWorker Part#	CW160178603
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	M-111
Voltage Rating (DC)	18.0 V
Current Rating	20.0 A
Power Dissipation	270 W
Breakdown Voltage (Collector to Emitter)	18 V
Gain	6 dB
hFE Min	10 @5A, 5V
hFE Max	10 @5A, 5V
Input Power (Max)	270 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	270000 mW
	expand all
Size-Length	24.89 mm
Size-Width	21.97 mm
Size-Height	7.11 mm
Operating Temperature	200℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

RF POWER BIPOLAR TRANSISTORS VHF MOBILE APPLICATIONS
DESCRIPTION
The SD1477 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for VHF
FM communications. This device utilizes diffused emitter resistors to withstand extremely high
VSWR under rated operating conditions, and is in ternally input matched to optimize power gain and efficiency over the 136 - 175 MHz band.
FEATURES SUMMARY
■ 175 MHz
■ 12.5 VOLTS
■ COMMON EMITTER
■ POUT= 100 W MIN. WITH 6.0 dB GAIN
