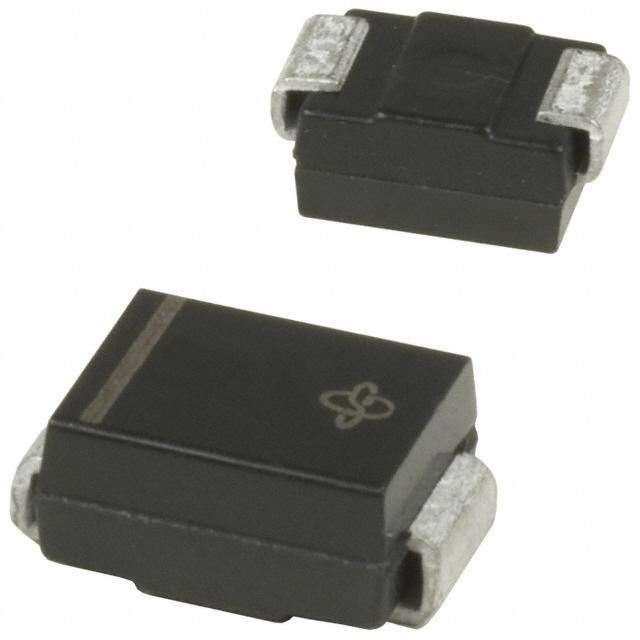

SMBJ28A ,TVS Diode - Littelfuse

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

190 points

Part No

SMBJ28A
Manufacturer

Littelfuse
ChipWorker Part#

CW445471
Category

TVS Diode
Package

DO-214AA
Description

Diode TVS Single Uni-Dir 28V 600W 2Pin SMB T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

5908 pcs In Stock
Estimated Price

$ 0.04

Buy SMBJ28A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SMBJ28A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SMBJ28A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SMBJ28A
Manufacturer	Littelfuse
ChipWorker Part#	CW445471
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	28.0 V
Capacitance	1280 pF
Power Rating	600 W
Breakdown Voltage	32.75 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Forward Voltage	5 V
Power Dissipation	600 W
Clamping Voltage	45.4 V
Test Current	1 mA
Max Breakdown Voltage	34.4 V
Peak Pulse Power	600 W
Min Breakdown Voltage	31.1 V
Reverse Breakdown Voltage	31.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	4.57 mm
Size-Width	3.94 mm
Size-Height	2.237 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8541100080
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The SMBJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
600W Peak pulse power capability at 10x1000µs waveform
Built-in strain relief
Glass passivated chip junction
Low incremental surge resistance
Excellent clamping capability
0.01% Repetition rate (duty cycle)
<1ps from 0V to V(BR) Minimum fast response time
<1µA above 12V Current IR
Available in unidirectional and bidirectional
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
-65 to 150°C Operating temperature range
