SN65LVDS1DBVRG4 - TI

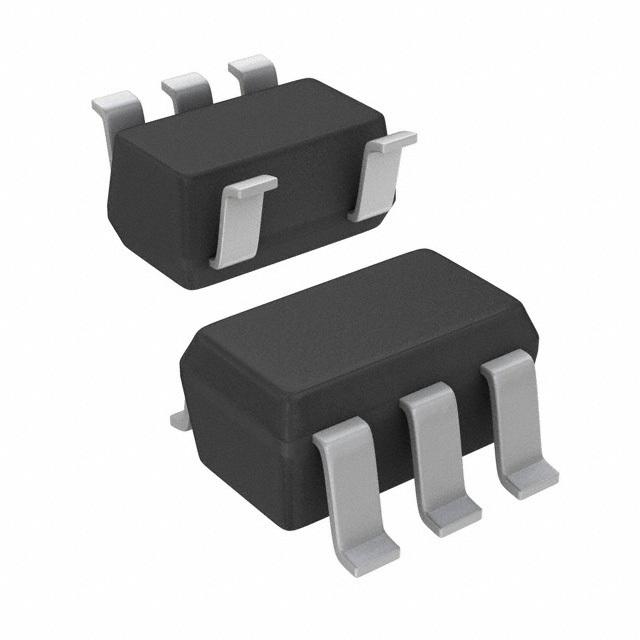

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN65LVDS1DBVRG4
Manufacturer

TI
ChipWorker Part#

CW4226425
Category

Interface IC, Interface Controller
Package

SOT-23-5
Description

TEXAS INSTRUMENTS SN65LVDS1DBVRG4 Differential Line Transceiver IC, 9kV ESD, 2.4V to 3.6V, SOT-23-5
Documentation

Datasheet

SN65LVDS1DBVRG4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN65LVDS1DBVRG4 Specifications

Attribute	Attribute Value

Part Number	SN65LVDS1DBVRG4
Manufacturer	TI
ChipWorker Part#	CW4226425
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	2.40V (min)
Power Dissipation	385 W
Input Current (Min)	20 μA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	385 mW
Supply Voltage	2.4V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.4 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

1/0 Driver LVDS SOT-23-5
