SN74CB3T1G125DBVR - TI

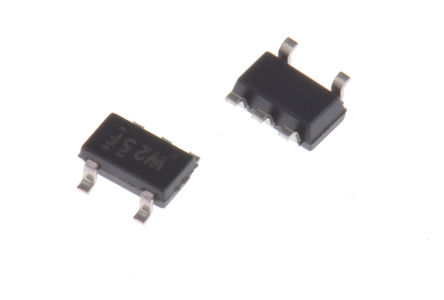

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74CB3T1G125DBVR
Manufacturer

TI
ChipWorker Part#

CW6472693
Category

Logic Controller, Logic IC
Package

SOT-23-5
Description

Single FET 2.5V/3.3V Low-Voltage Bus Switch with 5V Tolerant Level Shifter 5-SOT-23 -40℃ to 85℃
Documentation

Datasheet

SN74CB3T1G125DBVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74CB3T1G125DBVR Specifications

Attribute	Attribute Value

Part Number	SN74CB3T1G125DBVR
Manufacturer	TI
ChipWorker Part#	CW6472693
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	2.30V (min)
Contacts Type	SPST
Number of Positions	5 Position
Number of Bits	1 Bit
Propagation Delay Max (tpd)	250 ps
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	expand all
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Bus Switch 1 x 1:1 SOT-23-5
