SN74LV4052ADBR - TI

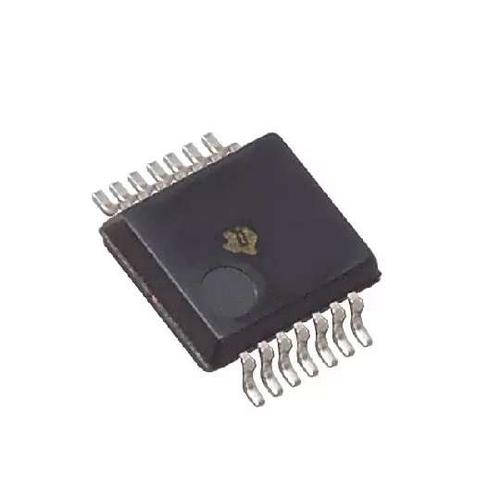

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74LV4052ADBR
Manufacturer

TI
ChipWorker Part#

CW29580933
Category

Interface IC, Interface Controller
Package

SSOP-16
Description

IC, MUX/DEMUX, SMD, SSOP16, 5V
Documentation

Datasheet

SN74LV4052ADBR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74LV4052ADBR Specifications

Attribute	Attribute Value

Part Number	SN74LV4052ADBR
Manufacturer	TI
ChipWorker Part#	CW29580933
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP-16
Supply Voltage (DC)	2.00V ~ 5.50V
Number of Outputs	8 Output
Supply Current	20 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Bits	4 Bit
Propagation Delay Max (tpd)	16.0 ns
Voltage Nodes	5.00 V, 3.30 V, 2.50 V
Bandwidth	50 Mhz
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	50 MHz
Supply Voltage	2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	6.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

DESCRIPTION
These dual 4-channel CMOS analog multiplexers/demultiplexers are designed for 2-V to 5.5-V VCC operation. The ’LV4052A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction.
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
1FEATURES
• 2-V to 5.5-V VCC Operation
• Fast Switching
• High On-Off Output-Voltage Ratio
• Low Crosstalk Between Switches
• Extremely Low Input Current
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)

expand all
