SN75C1168NSR - TI

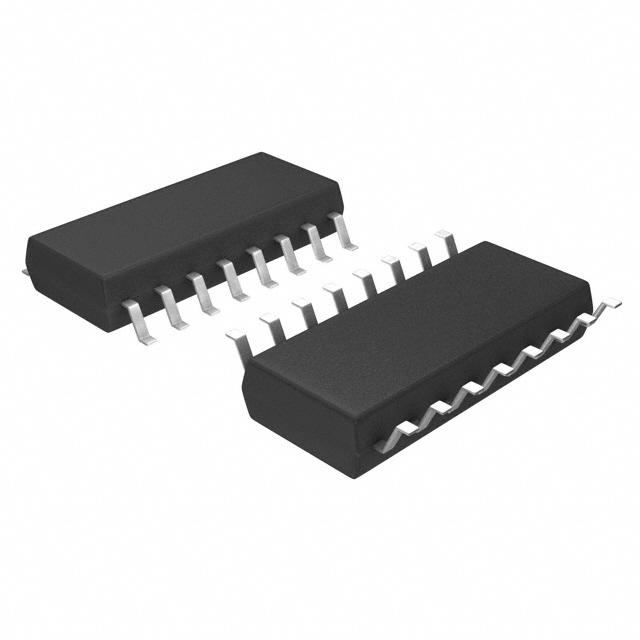

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN75C1168NSR
Manufacturer

TI
ChipWorker Part#

CW13895896
Category

Interface IC, Interface Controller
Package

SOP-16
Description

2/2 Transceiver Full RS422, RS485 16-SO
Documentation

Datasheet

SN75C1168NSR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN75C1168NSR Specifications

Attribute	Attribute Value

Part Number	SN75C1168NSR
Manufacturer	TI
ChipWorker Part#	CW13895896
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOP-16
Supply Voltage (DC)	4.50V (min)
Supply Current	9 mA
Number of Positions	16 Position
Data Rate	10.0 Mbps
Drivers Per Package	2
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	10.3 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR

Product Description

The SN75C1168NSR is a dual Differential Driver and Receiver designed for balanced transmission lines. The device meets TIA/EIA-422-B and ITU recommendation V.11. It combines dual 3-state differential line drivers and 3-state differential line receivers, both of which operate from a single 5V power supply. The driver and receiver have active-high and active-low enables, respectively, which can be connected together externally to function as direction control. It has individual active-high enables.
