SR6ZA024 - TE Connectivity

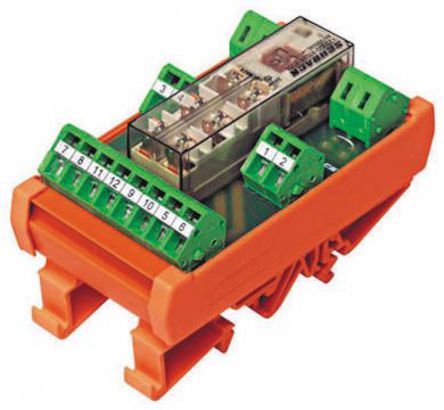

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SR6ZA024
Manufacturer

TE Connectivity
ChipWorker Part#

CW87056123
Category

Industrial Relay
Description

PCB Mount Non-Latching Relay Through Hole; 8A; 24V dc
Documentation

Datasheet

SR6ZA024 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SR6ZA024 Specifications

Attribute	Attribute Value

Part Number	SR6ZA024
Manufacturer	TE Connectivity
ChipWorker Part#	CW87056123
Category	Industrial Relay
Documentation	Datasheet
Mounting Style	Through Hole
Current Rating	8 A
Input Voltage (DC)	24.0 V
Contacts Type	3PST-NO
Contact Current Rating	8 A
Coil Voltage	24 VDC
Coil Current	50 mA
Coil Power (DC)	1.20 mW
Coil Resistance	480 Ω
Coil Voltage (DC)	24 V
Coil Power	1.2 W
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	24 VDC
Supply Voltage	240 VAC
	expand all
Size-Height	58 mm
Contact Material	Silver Tin Oxide
Operating Temperature	-25℃ ~ 50℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Not Applicable
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536490080
ECCN Code	EAR99

Product Description

The SR6Z series 6-pole Relay with force guided contacts according to EN50205 on DIN-rail mountings. It is suitable for use with the contact monitoring in railway, machine controls and many more applications.
