ST1S06 - ST Microelectronics

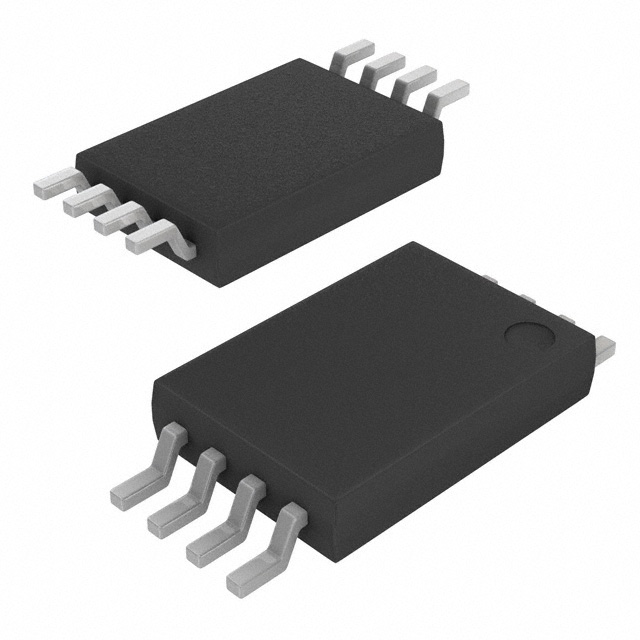

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ST1S06
Manufacturer

ST Microelectronics
ChipWorker Part#

CW532295572
Description

Synchronous rectification with inhibit, 1.5A, 1.5MHz fixed or adjustable, step-down switching regulator in DFN6 3x3
Documentation

Datasheet

ST1S06 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

Product Description

Description
The ST1S06 is a step down DC-DC converter optimized for powering low-voltage digital core in HDD applications and, generally, to replace the high current linear solution when the power dissipation may cause an high heating of the application environment. It provides up to 1.5A over an input voltage range of 2.7 V to 6 V. An high switching frequency (1.5 MHz) allows the use of tiny surface-mount components: as well as the resistor divider to set the output voltage value, only an inductor and two capacitors are required. Besides, a low output ripple is guaranteed by the current mode PWM topology and by the use of low ESR SMD ceramic capacitors.
Features
■ Step-down current mode PWM (1.5 MHz) DC-DC converter
■ 2% DC output voltage tolerance
■ Synchronous rectification
■ Inhibit function
■ Internal soft start
■ Typical efficiency: > 90 %
■ 1.5 A Output current capability
■ Not switching quiescent current: max 1.5mA over temperature range
■ RDS(ON) typ. 150mΩ
■ Uses tiny capacitors and inductors
■ Operative junction temp. - 30 °C to 125 °C
■ Available in DFN6D 3x3 exposed pad
