ST72F63BK4M1 - ST Microelectronics

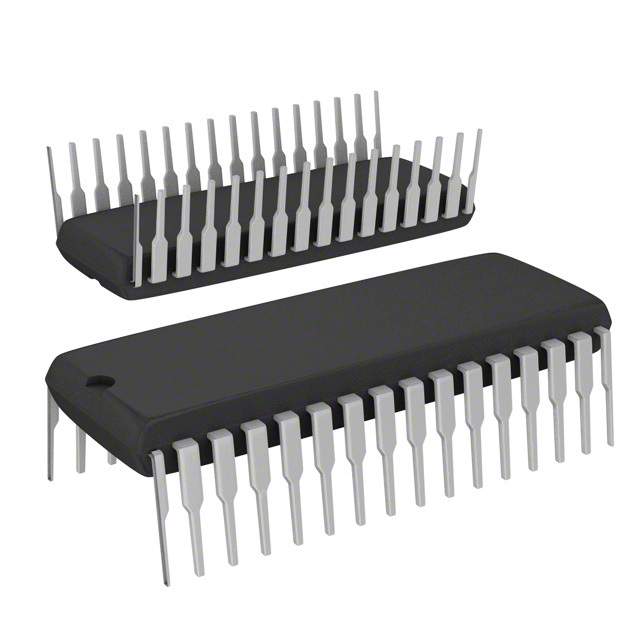

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ST72F63BK4M1
Manufacturer

ST Microelectronics
ChipWorker Part#

CW97450287
Category

Microcontroller, MCU IC
Package

BSOP-34
Description

LOW SPEED USB 8Bit MCU FAMILY WITH FLASH/ROM, UP TO 512Bytes RAM, 8Bit ADC, WDG, TIMER, SCI & I2C, SO34-PSDIP32
Documentation

Datasheet

ST72F63BK4M1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ST72F63BK4M1 Specifications

Attribute	Attribute Value

Part Number	ST72F63BK4M1
Manufacturer	ST Microelectronics
ChipWorker Part#	CW97450287
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	34 Pin
Case/Package	BSOP-34
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Clock Speed	8.00 MHz, 8.00 MHz (max)
RAM Memory Size	512 x 8
Number of Bits	8 Bit
Power Dissipation	500 mW
FLASH Memory Size	16 KB
Number of I/O Pins	27 IO
Access Time	8.00 µs
Number of ADCs	2 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	500 mW
	expand all
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The ST7263B microcontrollers form a sub-family of the ST7 MCUs dedicated to USB applications. The devices are based on an industry-standard 8-bit core and feature an enhanced instruction set. They operate at a 24 MHz or 12 MHz oscillator frequency. Under software control, the ST7263B MCUs may be placed in either Wait or Halt modes, thus reducing power consumption. The enhanced instruction set and addressing modes afford real programming potential. In addition to standard 8-bit data management, the ST7263B MCUs feature true bit manipulation, 8x8 unsigned multiplication and indirect addressing modes. The devices include an ST7 Core, up to 32Kbytes of program memory, up to 1024 bytes of RAM, 27 I/O lines and the following on-chip peripherals: USB low speed interface with 3 endpoints with programmable in/out configuration using the DMA architecture with embedded 3.3V voltage regulator and transceivers (no external components are needed).8-bit analog-to-digital converter (ADC) with 12 multiplexed analog inputs Industry standard asynchronous SCI serial interfaceWatchdog 16-bit timer featuring an external clock input, 2 Input Captures, 2 Output Compares with Pulse Generator capabilitiesFast I2C multimaster interfaceLow voltage reset (LVD) ensuring proper power-on or power-off of the device
The ST72F63B devices are Flash versions. They support programming in IAP mode (in-application programming) via the on-chip USB interface.
**Key Features**
2 communication InterfacesAsynchronous serial communications InterfaceI2 C multimaster Interface up to 400 kHz
2 timersProgrammable watchdog 16-bit timer with 2 Input Captures, 2 Output Compares, PWM output and clock input
Development toolsVersatile development tools (under Windows) including assembler, linker, C-compiler, archiver, source level debugger, software library, hardware emulator, programming boards and gang programmers, HID and DFU software layers
Memories4, 8, 16 or 32 Kbytes program memory: high density Flash (HDFlash), FastROM or ROM with Read-Out and Write protectionIn-application programming (IAP) and in-circuit programming (ICP) 384, 512 or 1024 bytes RAM memory (128-byte stack)
USB (universal serial bus) InterfaceDMA for low speed applications compliant with USB 1.5 Mbs (version 2.0) and HID specifications (version 1.0)Integrated 3.3 V voltage regulator and transceiversSupports USB DFU class specificationSuspend and Resume operations3 endpoints with programmable Input/Output configuration
Clock, reset and supply managementRun, Wait, Slow and Halt CPU modes12 or 24 MHz oscillatorRAM Retention modeOptional low voltage detector (LVD)
1 analog peripheral8-bit A/D converter with 8 or 12 channels
Instruction Set63 basic instructions17 main addressing modes 8 x 8 unsigned multiply instructionTrue bit manipulation
Up to 27 I/O portsUp to 8 high sink I/Os (10 mA at 1.3 V)2 very high sink true open drain I/Os (25 mA at 1.5 V)Up to 8 lines individually programmable as interrupt inputs
