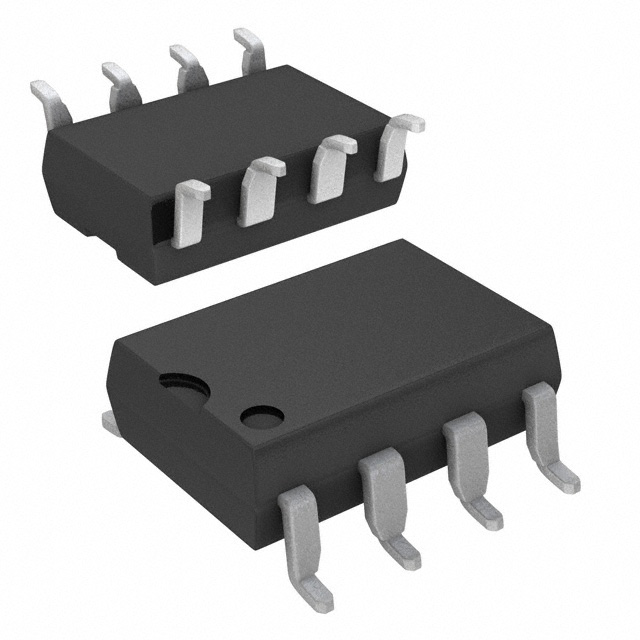

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLP351
Manufacturer

Toshiba
ChipWorker Part#

CW83005096
Package

DIP
Description

Optocoupler Drive Push-Pull 1CH 30V 1000V 8Pin PDIP Magazine
Documentation

Datasheet

TLP351 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLP351 Specifications

Attribute	Attribute Value

Part Number	TLP351
Manufacturer	Toshiba
ChipWorker Part#	CW83005096
Documentation	Datasheet
Number of Pins	8 Pin
Case/Package	DIP
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	20 mA
Fall Time (Max)	50 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

Inverter for Air Conditioner IGBT/Power MOS FET Gate Drive Industrial Inverter
The TOSHIBA TLP351 consists of a GaAℓAs light emitting diode and a integrated photodetector.
This unit is 8-lead DIP package. TLP351 is suitable for gate driving circuit of IGBT or power MOS FET. Especially TLP351 is capable of “direct” gate drive of lower Power IGBTs.
• Peak output current: ±0.6 A (max)
• Guaranteed performance over temperature: −40 to 100°C
• Supply current: 2 mA (max)
• Power supply voltage: 10 to 30 V
• Threshold input current : IF= 5 mA (max)
• Switching time (tpLH/tpHL) : 700 ns (max)
• Common mode transient immunity: 10 kV/μs
• Isolation voltage: 3750 Vrms
• Option(D4)
VDE Approved : DIN EN60747-5-2
Maximum Operating Insulation Voltage : 890VPK
Highest Permissible Over Voltage : 4000VPK
