STD1802T4 ,BJT Transistor, BJT - ST Microelectronics

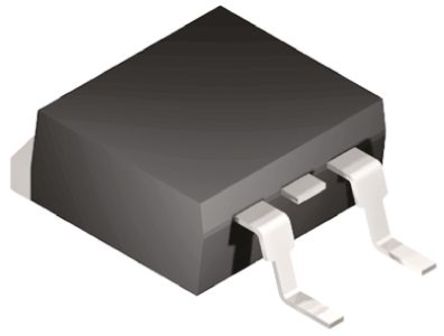

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

94 points

Part No

STD1802T4
Manufacturer

ST Microelectronics
ChipWorker Part#

CW11989763
Category

BJT Transistor, BJT
Package

TO-252-3
Description

TO-252 NPN 60V 3A
Documentation

Datasheet
Ships from

Moscow
Наличие

3240 pcs In Stock
Estimated Price

$ 0.22

Buy STD1802T4

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

STD1802T4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

STD1802T4 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	STD1802T4
Manufacturer	ST Microelectronics
ChipWorker Part#	CW11989763
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Frequency	150 MHz
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	15 W
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	3A
hFE Min	200 @100mA, 2V
hFE Max	400
Input Power (Max)	15 W
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	15000 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The STD1802T4 is a 60V Low Voltage Fast Switching NPN Power Transistor manufactured in planar technology with base island layout. The resulting transistor shows exceptional high gain performance coupled with very low saturation voltage. Fast switching times and very low saturation voltage resulting in reduced switching and conduction losses.
Very low collector to emitter saturation voltage
High current gain characteristic
Fast-switching speed
Well-controlled hFE parameter for increased reliability
