STD95N4F3 ,MOSFET, MOSFET Transistor - ST Microelectronics

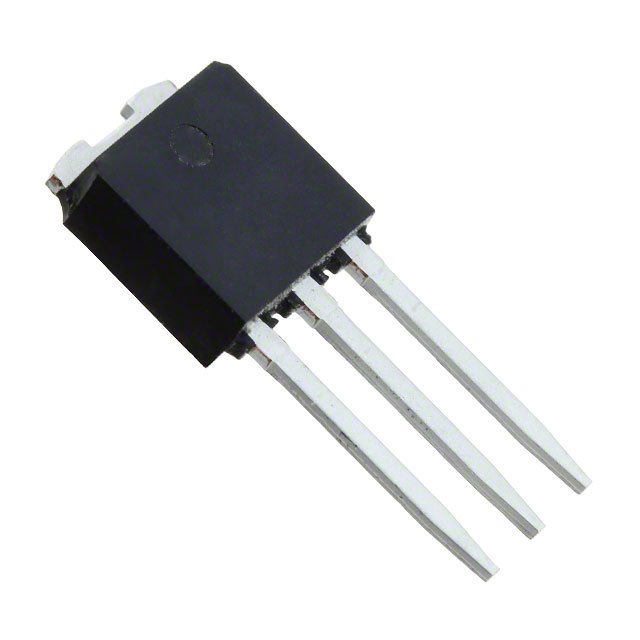

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

64 points

Part No

STD95N4F3
Manufacturer

ST Microelectronics
ChipWorker Part#

CW35493858
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

Trans MOSFET N-CH 40V 80A 3Pin(2+Tab) DPAK T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.55

Buy STD95N4F3

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

STD95N4F3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

STD95N4F3 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	STD95N4F3
Manufacturer	ST Microelectronics
ChipWorker Part#	CW35493858
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.005 Ω
Power Dissipation	110 W
Threshold Voltage	4 V
Input Capacitance	2200 pF
Drain to Source Voltage (Vds)	40 V
Rise Time	50 ns
Input Capacitance (Ciss)	2200pF @25V(Vds)
Input Power (Max)	110 W
Fall Time	15 ns
Operating Temperature (Max)	175 ℃
Power Dissipation (Max)	110W (Tc)
	expand all
Size-Width	6.2 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

N-Channel 40V 80A (Tc) 110W (Tc) Surface Mount DPAK
